New Wireless 12 Gang RGB Switch Panel System With ACC Wire


Newest 12gang Wireless
Newest 8gang Wireless
8gang RGB+ACC
8gang RGB+ACC+APP
12gang RGB+ACC
12gang RGB+ACC+APP
12gang RGB
Prix:
Prix réduit$205.00 USD

Description

You asked, we listened.- COLIGHT Launches Wireless 12 Gang RGB Switch Panel System With ACC Wire!
In modern vehicles and off-road equipment, wireless switch panel offer greater installation flexibility. You can mount the panel in any convenient location without being constrained by wire length or routing paths. This also means a reduced risk of cable connection failures. With no wires to wear out or break, the system is more reliable. You can easily control and adjust various devices, even operating them from a certain distance.
Our Wireless 12 Gang RGB Switch Panel designed to manage up to 12 different LED lights or electrical devices, this versatile switch panel is equipped with four 30A circuits, two 20A circuits, two 15A circuits, and four 10A circuits, handling a maximum input of 80A (960W/12V, 1920W/24V). The built-in solid-state relay ensures faster response times and lower energy consumption, while the modern Type-C charging port offers efficient recharging for up to two weeks of uninterrupted performance. With flexible wiring options to connect to ACC or battery, customizable RGB LED backlight, and three silicone buttons for memory function, brightness adjustment, and RGB color adjustment, this switch panel elevates your driving experience. Simplified installation, flexible operation, and high reliability make our Wireless 12 Gang RGB Switch Panel an indispensable addition to any vehicle or off-road gear, providing unparalleled convenience and control.

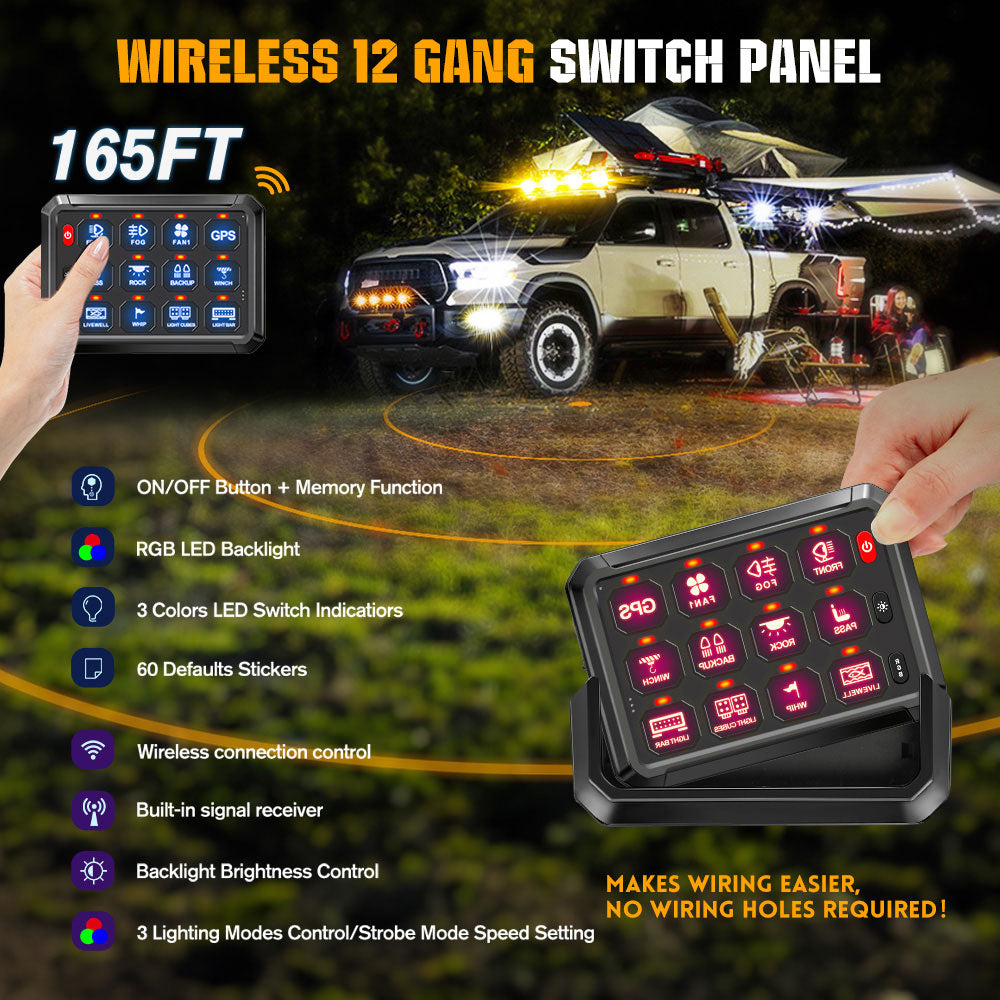

Features:

  • Control Multiple Devices: Manage up to 12 different LED lights or electrical devices.
  • Versatile Circuits: Four 30A circuits, two 20A circuits, two 15A circuits, and four 10A circuits.

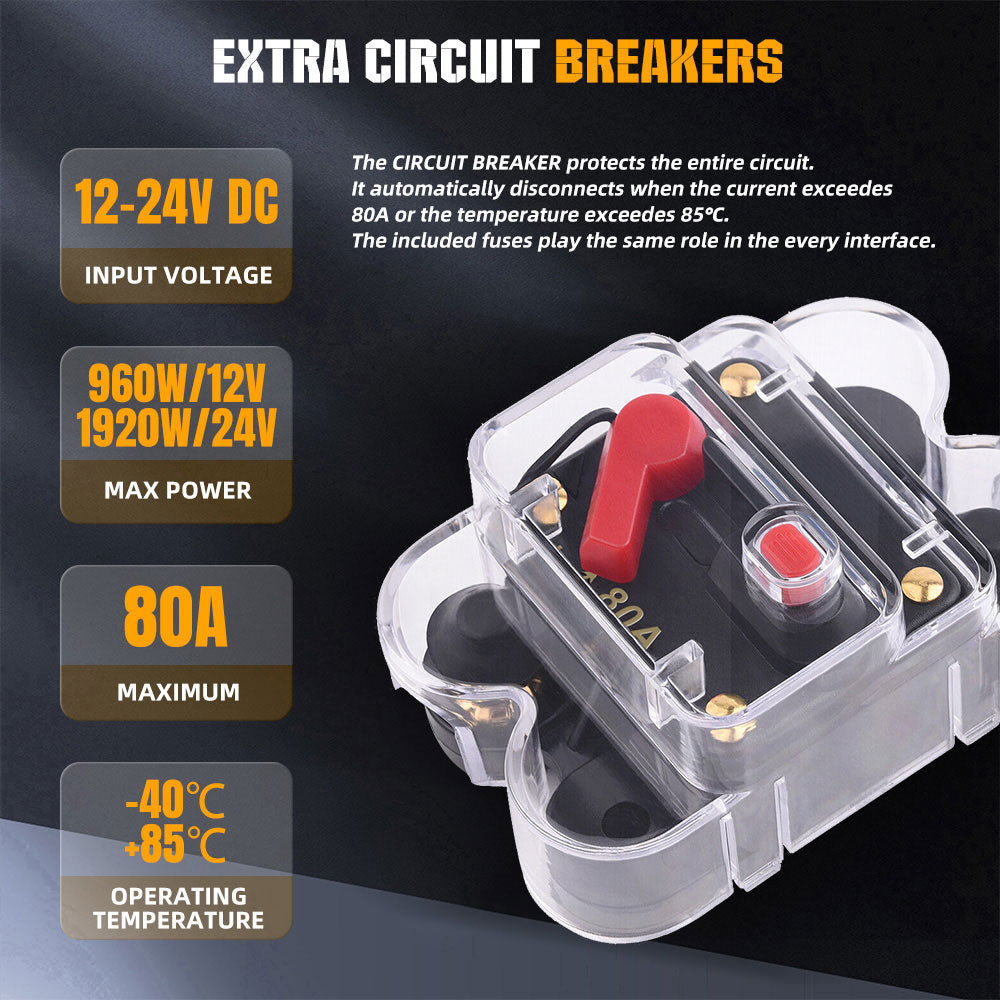

  • High Capacity: maximum 80A input, 960W/12V, 1920W/24V

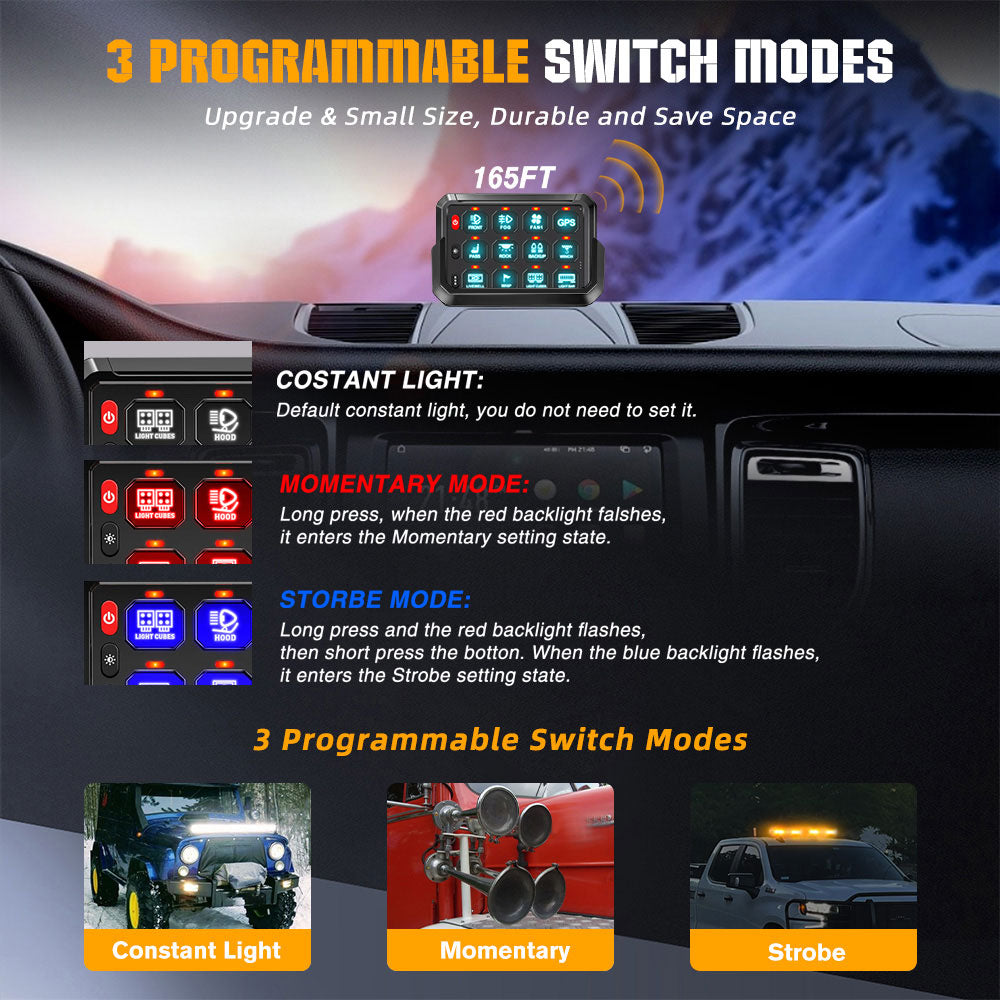

  • 3 Modes Setting:
    RED-Toggle
    , Constant light mode (Great for things like fog lights or driving. )
    BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
    GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
  • Solid-State Relay: Built-in for faster response time and lower energy consumption.

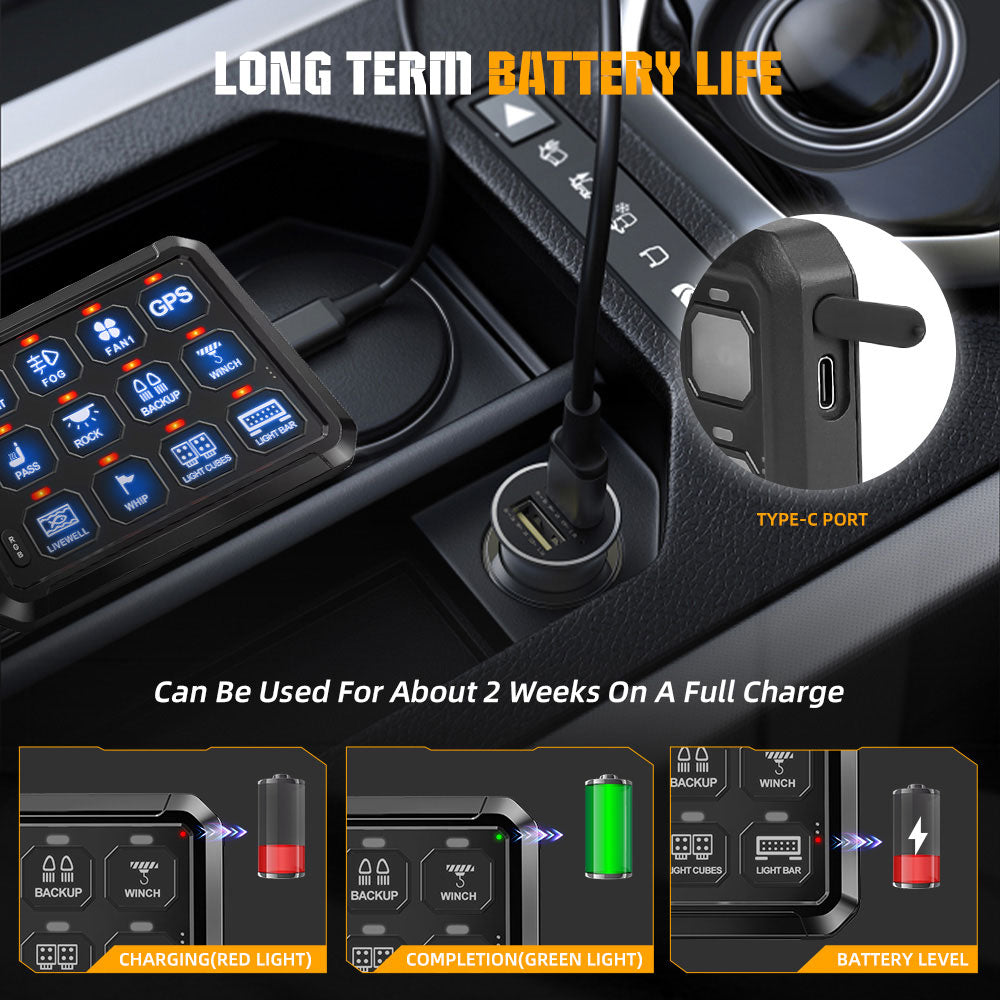

  • Enjoy up to 2 weeks of usage on a single charge, ensuring uninterrupted performance and convenience
  • Wireless Panel equipped with a modern Type-C charging port for faster and more efficient charging
  • Silicone Buttons with 3 Functions: Memory function, brightness adjustment, and RGB color adjustment.
  • Extra Fuses: Comes with 5 spare fuses for easy replacement.
  • Flexible Wiring Options: Connect to ACC or battery with a control box button switch for easy toggling.
  • Long-Term Battery Life: Can be used for about 2 weeks on a full charge.
  • Charging Indicators: Red light for charging, green light for completion
  • On/Off Button with Memory Function: For convenient control.
  • RGB LED Backlight: Customizable backlight for better visibility.
  • LED Switch Indicators: 3 colors for clear indication.
  • Default Stickers: 60 pre-labeled stickers for easy setup.

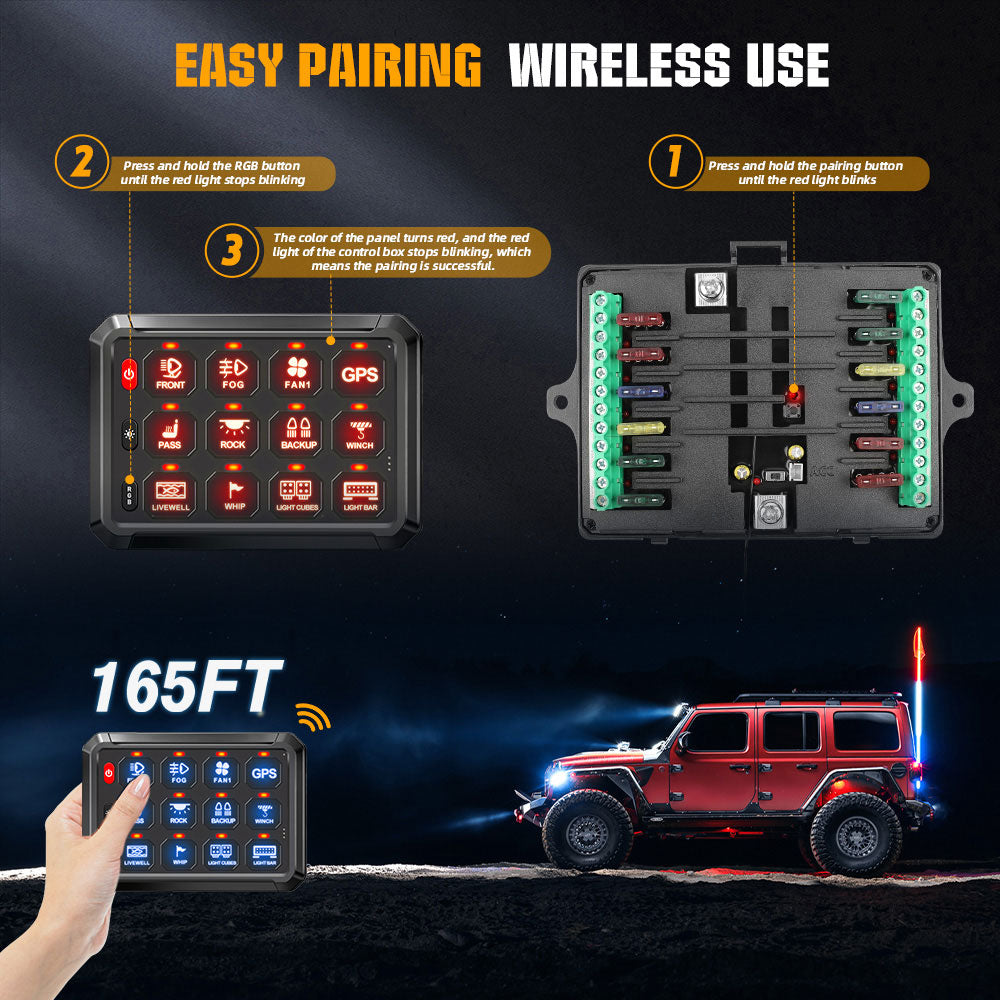

  • Wireless Connection Control: Built-in single receiver for wireless operations.
  • Backlight Brightness Control: Adjustable to fit your preferences.
  • Three Lighting Modes: Constant light, momentary, and strobe mode with speed settings.
  • Easy Wiring: No wiring holes required for installation.
  • Wide Voltage Range:12-24V DC
  • High Power Capability: Maximum power of 960W at 12V & 1920W at 24V
  • Temperature Range: Operates in temperatures from -40 to +85

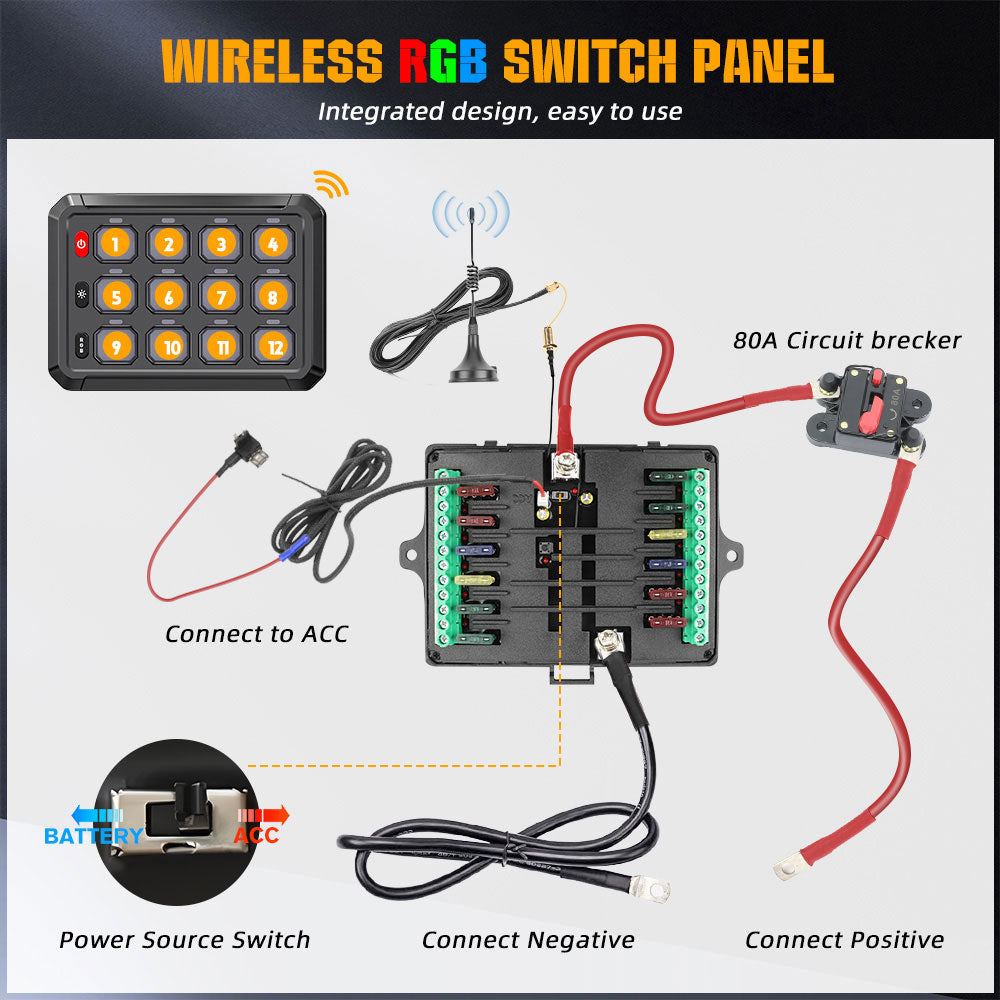

ACC or Battery Wiring Options:
The wireless 12 Gang RGB switch panel offers two wiring options: connect to ACC or battery. The control box features a button switch for easy and safe toggling between ACC or battery power.

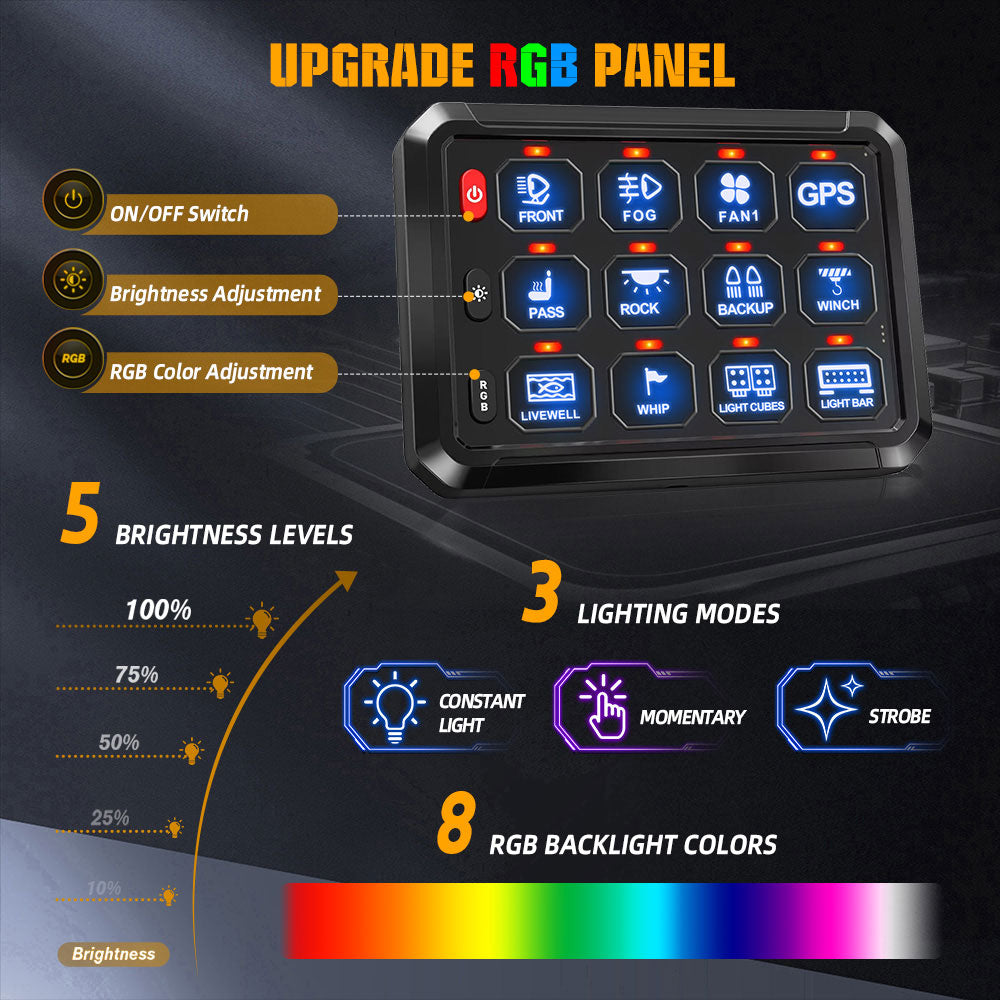

Multi-Function on the Switch Panel
With a large 5” L x 3.5” W x 0.5” H design, this 12 Switch Panel operates at 12V / 24V DC and comes with a full accessory kit for complete installation. Enhance your driving experience with three silicone buttons for ON/OFF, brightness adjustment, and RGB color adjustment. Choose from 100%, 75%, 50%, 25%, and 10% brightness levels, tailoring the lighting to your preferences. Long-pressing the brightness button activates Constant light mode (white), Momentary mode (red), or Pulsed mode (blue). Easily switch between eight single colors (red, orange, yellow, green, blue, purple, white) with a short press of the "RGB" key.

By providing simplified installation, flexible operation, and higher reliability, wireless control panels significantly enhance the functionality and user experience of vehicles and equipment. These advantages make wireless switch panel an indispensable part of modern vehicles and off-road gear.

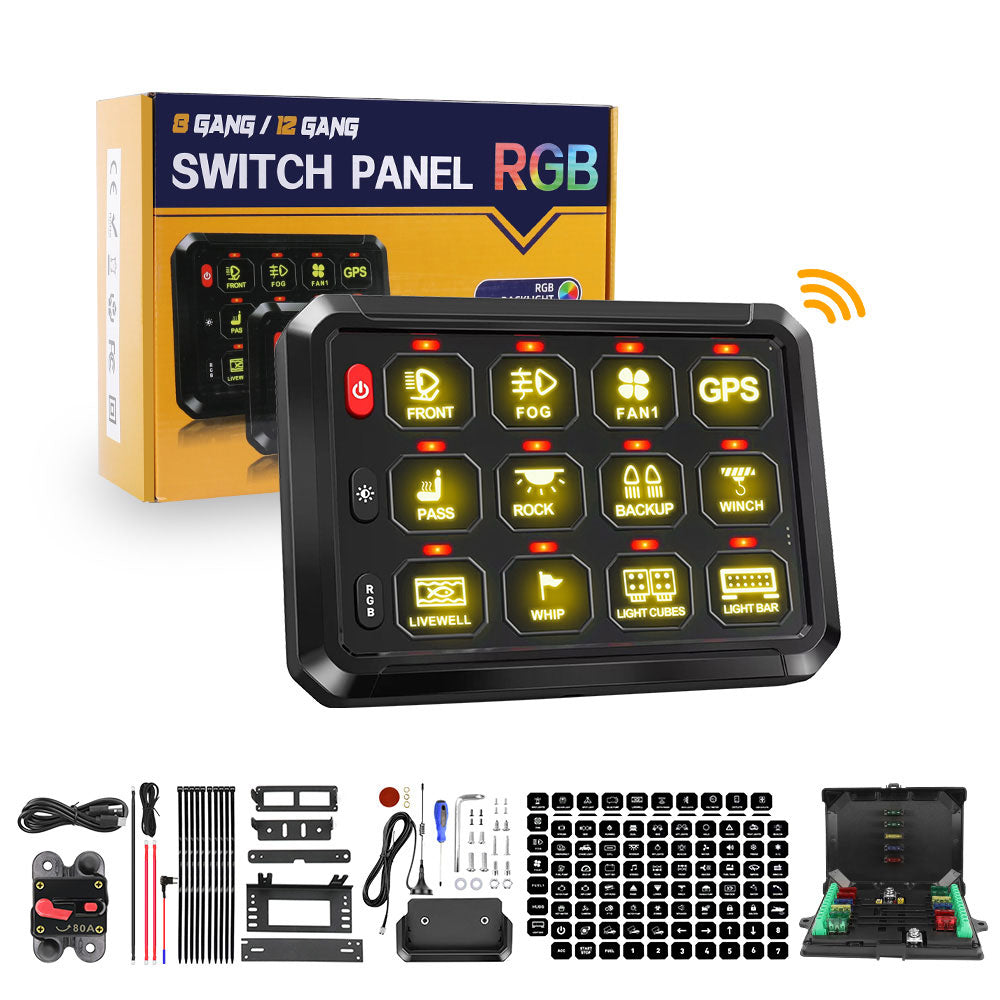

What's Included:

  • 1X 12gang switch panel
  • 1X circuit control box
  • 1x Screwdriver
  • 10x Cable Ties
  • 1x Antenna

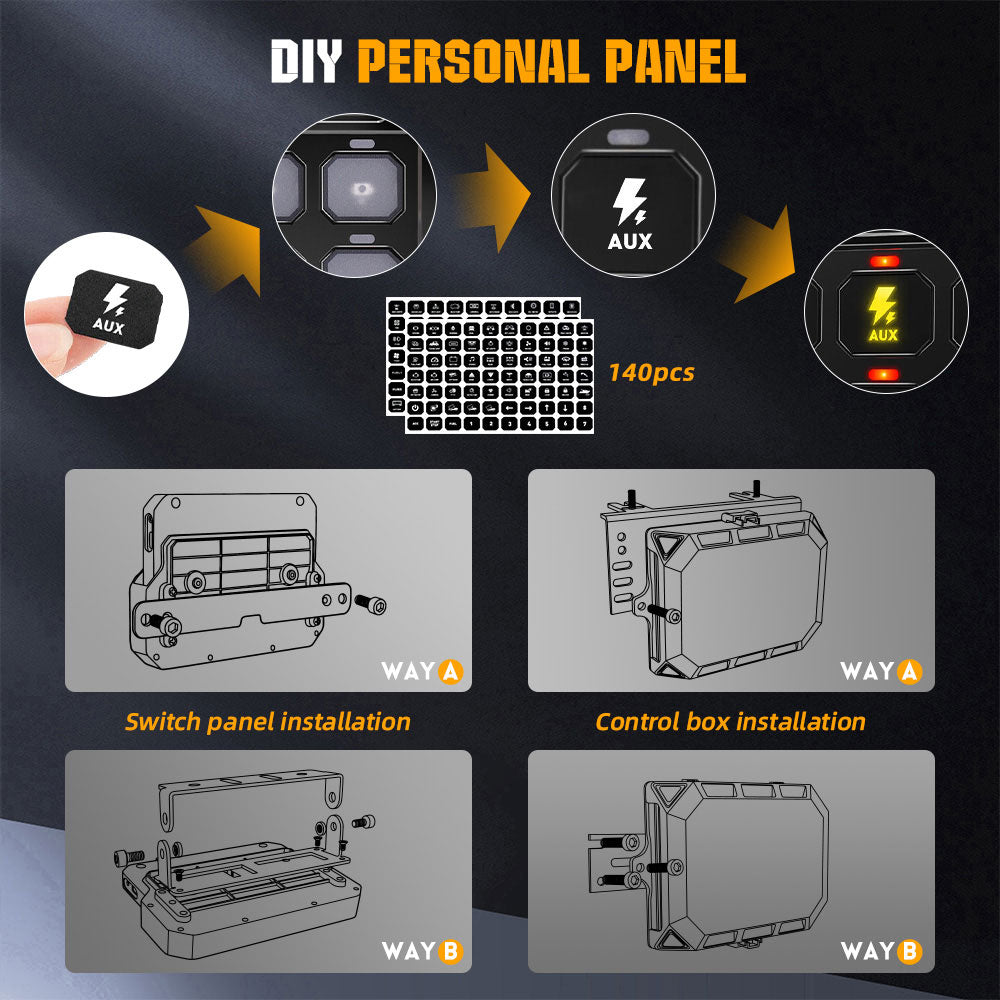

  • 140 Pcs DIY Stickes
  • 5x Wiring Harness
  • 5x Mounting Brackets
  • 1x Instruction
  • 1x Screw
