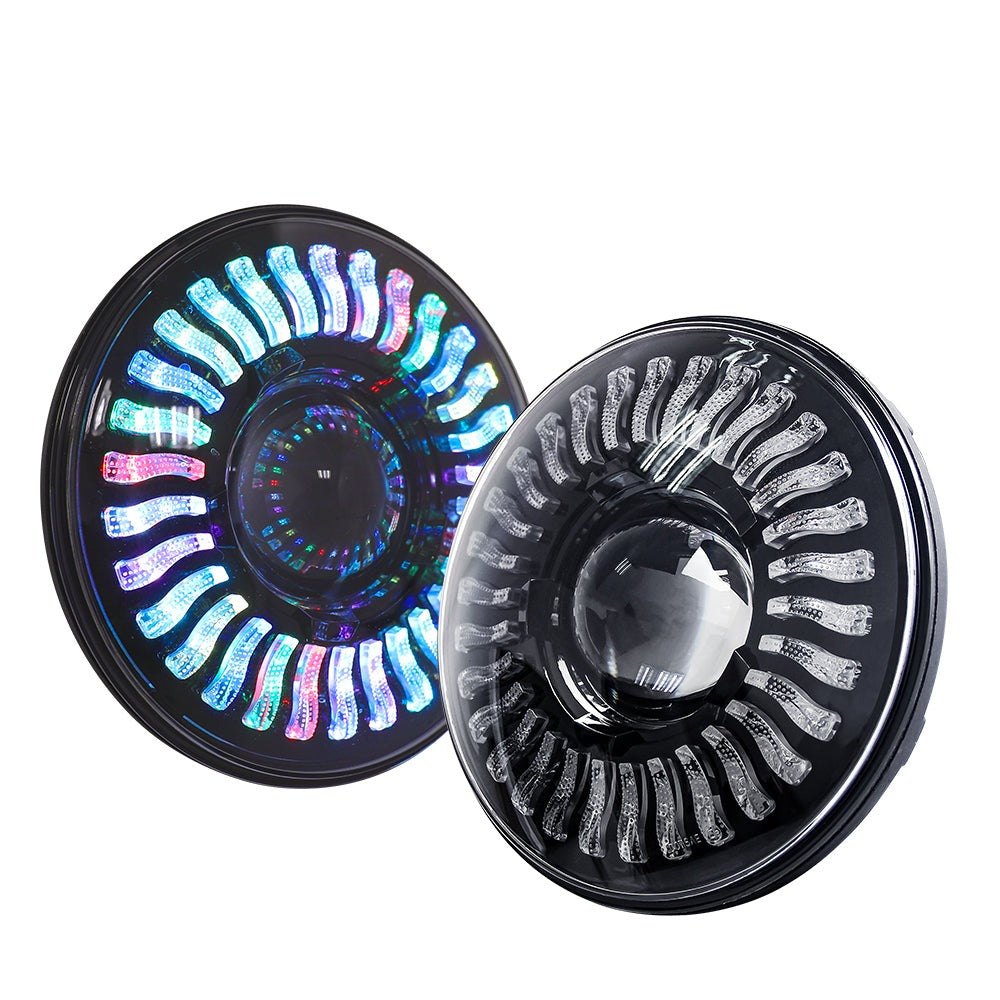

You may have done research in the 7-inch round LED headlight market, but this RGB headlight will definitely catch your attention. Colight 7inch round RGB halo headlight is the most functional and attractive headlight in the store. You can get adjust brightness, music mode, modify patterns, timing function, flashing function, automatic control from these RGB headlamps, easy to install, plug & play.

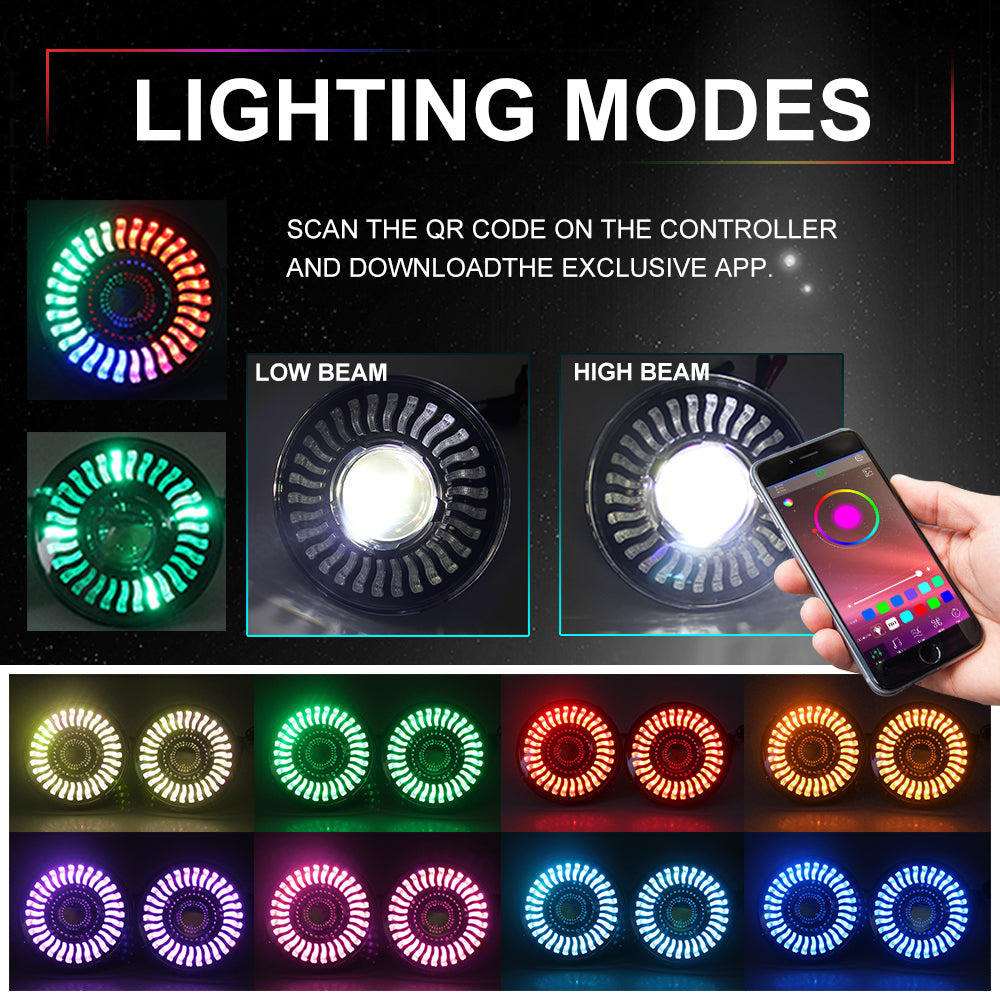

FUNCTION: Colight 7" RGB Sealed Beam Headlights are new to the market. It features a dynamic RGB lighting mode and high&low beam. Easily control the RGB mode by your phone. The latest design enhances stereoscopic and updates your jeep wrangler LED headlamp assembly projector with multi-functions, including timing function, music mode, color grad, flashing, and automatic control. Manual control unlimited 16 Million colors option. App for both IOS and Android systems.

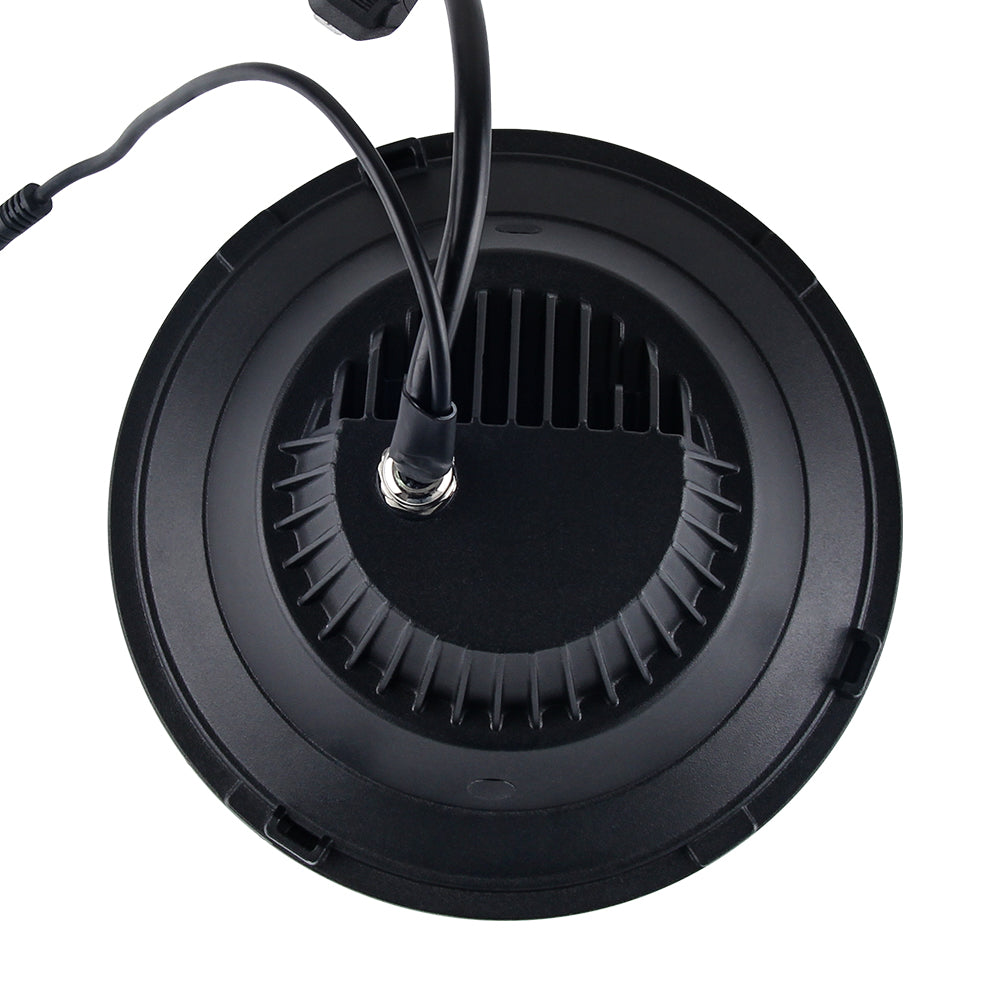

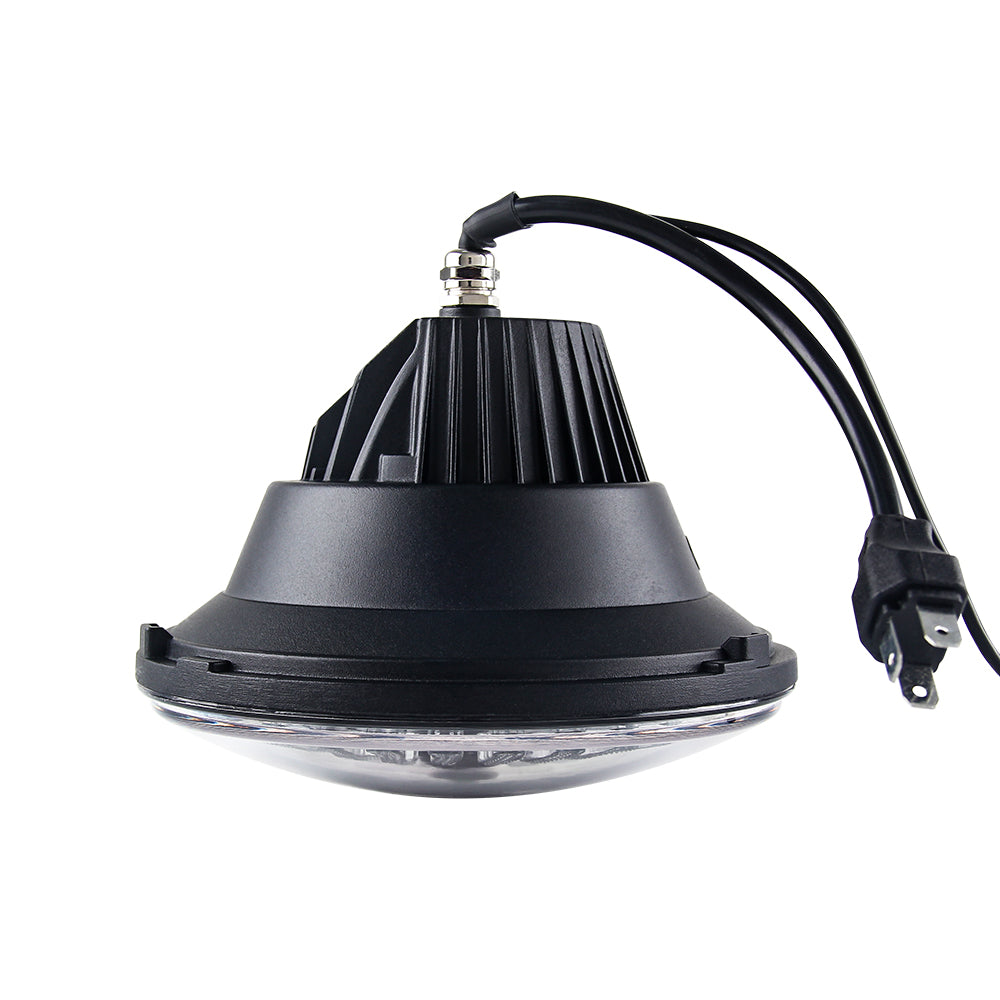

TOUGH BUILT: Made of aluminum die-cast housing, features fast heat dissipation, durable, good heat resistance. Each light is epoxy sealed to prevent moisture. Waterproof IP68, Dustproof and Shockproof, Anti-corrosion design. High-intensity upgraded 5050 LEDs improve the brightness of RGB Led headlight to replace the original halogen and HID headlight.
EASY INSTALLATION: Plug n Play, H4 and H13 adapter included. (NOTE: H2 Hummer needs 9007 to H4 adapter.) Bluetooth Controlled Jeep Led Headlights: both IOS and Android systems are compatible.
Installation Steps: In order to make the headlight work, and to achieve the headlight high/low beam switch, please connect H4 connect to the car, you may need a converter to match if your car plug is h13 ( The package comes with an h13 to h4 converter).
The red wire is connected to the car ACC and the black wire is connected to GNC.
If Blue line 1 is connected to the left headlight, please connect Blue line 2 to the left turn signal line of the car. If White line 1 is connected to the left headlight, please connect White line 2 to the left turn signal line of the car.
Warm Tips About APP: Please don’t select any mode in “Setting”>” RGB Scheduling”, If you select one mode, it will cause the issue that the light becomes red once you choose a green color or become green once you choose red.
In order to solve this issue, we suggest you select “GRB” in the “RGB Scheduling” and set the Pixel as 36, which will help the halo light work the way around（If the Pixel is <36, it will cause the issue that the halo just work on a small piece like the figure above）
Please follow the steps to fix the issue mentioned above : Step1: Slide the RGB Scheduling and choose “GRB”; Click the Pixel as the figure shown. Step2: Enter number “36” and click “Confirm”.

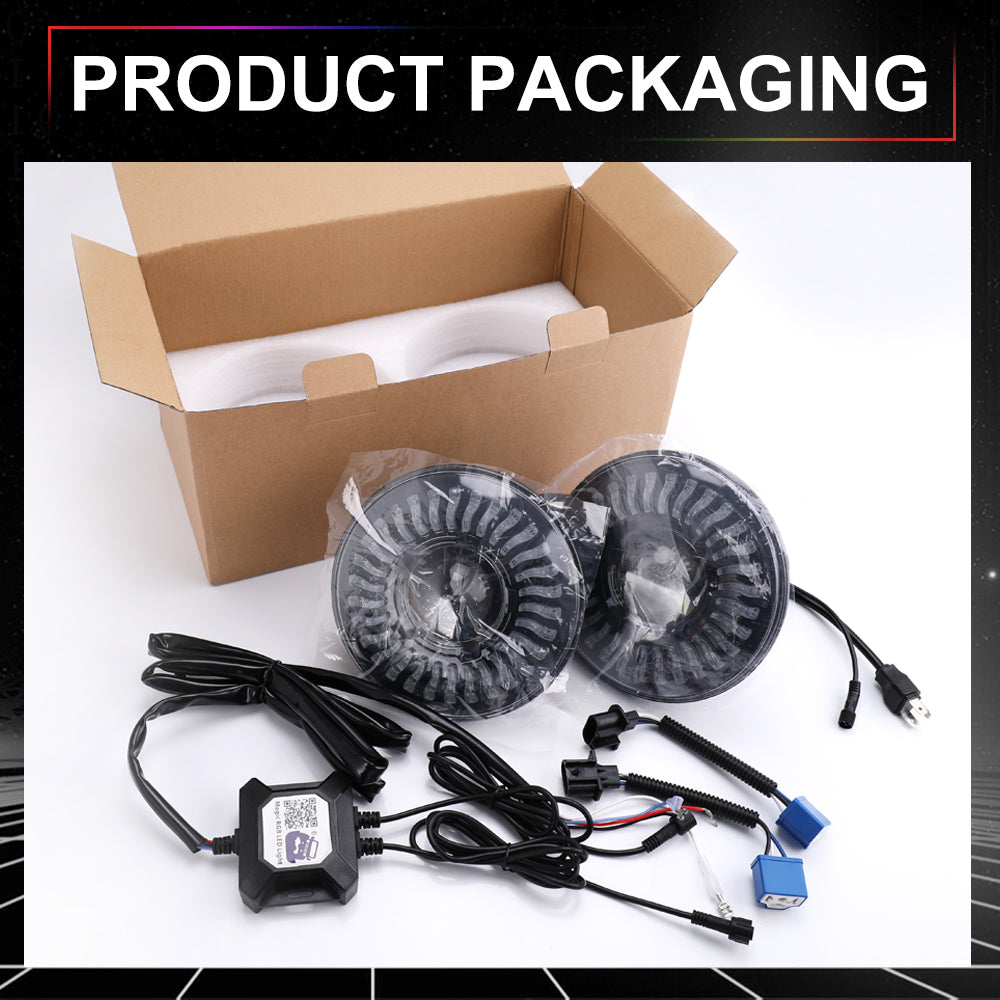

PACKAGE INCLUDED: 2 x 7 inch LED Headlight with RGB Halo Ring, 1 x Bluetooth Controller with Wire Harness, 2 x H4 to H13 Adapter.
- Current Draw: 2.15A@ 12.06V(Low beam), 2.61A @ 12.06V(High beam)
- Raw Lumens: Low: 3380lm, High:4580lm
- Wattage: Low: 24W, High:30W
- Dimensions: 7inch
- Light Performance: High&Low Beam, RGB DRL

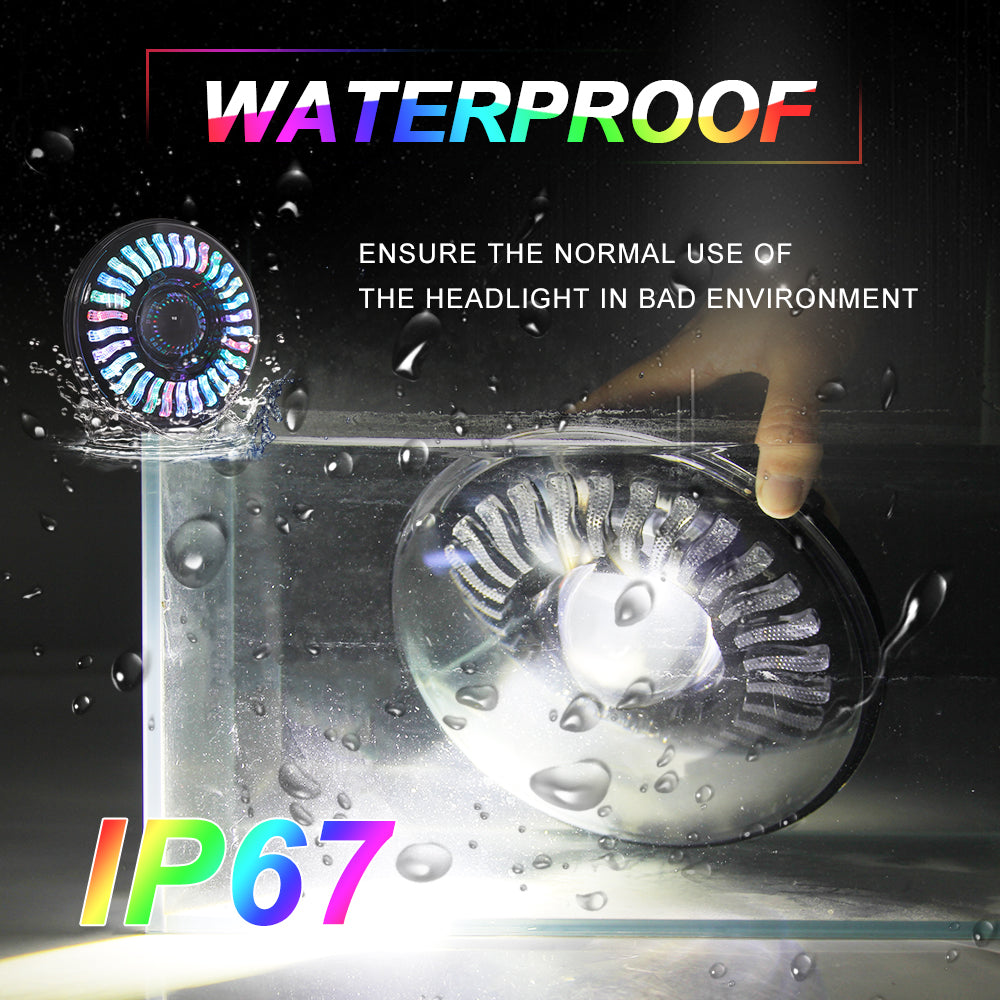

- IP Rating: IP68

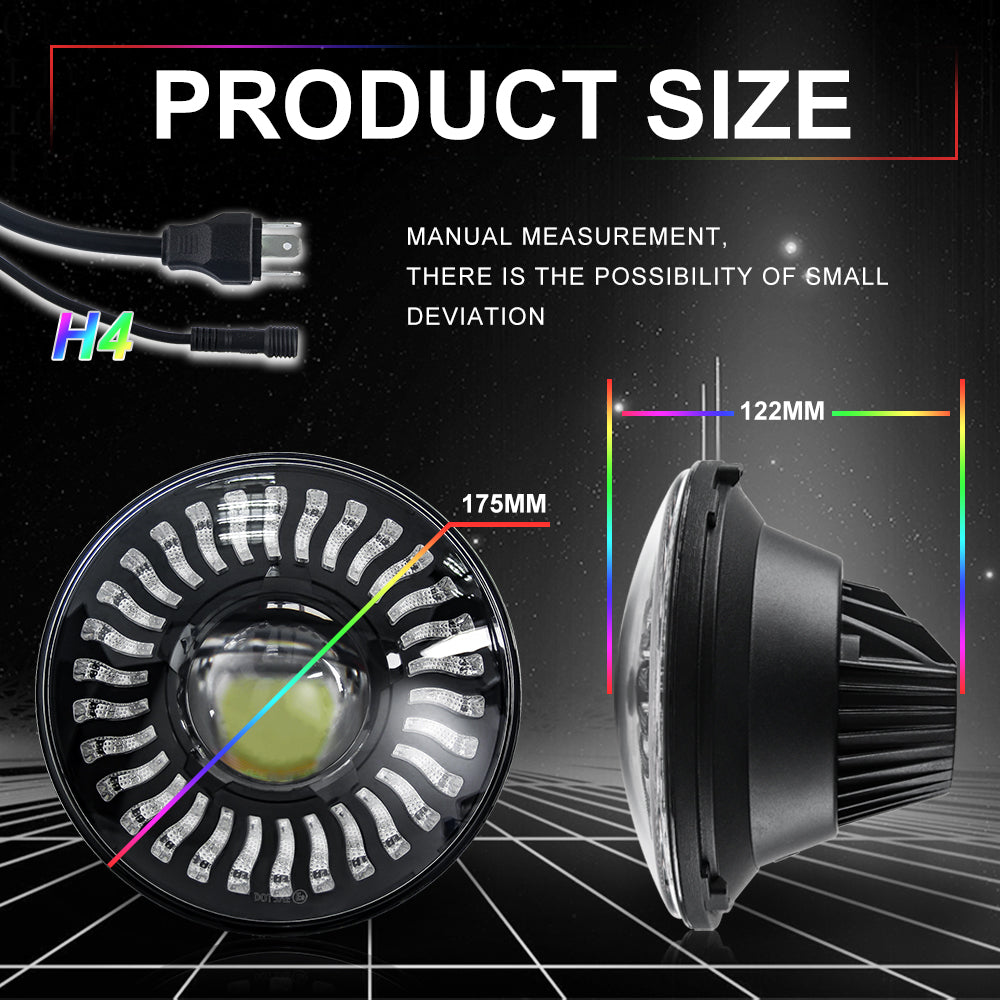

- Dimensions: 6.89in dia x 4.8in
- Product Weight: 3.6kg / 7.92lb
- Operating Temperature: -30 to 40 degree C
- Standard H4, 3-blade connector and EXTRA RGB control wire
- Durable IP67-rated aluminum housing, with UV-protected scratch-resistant polycarbonate lens

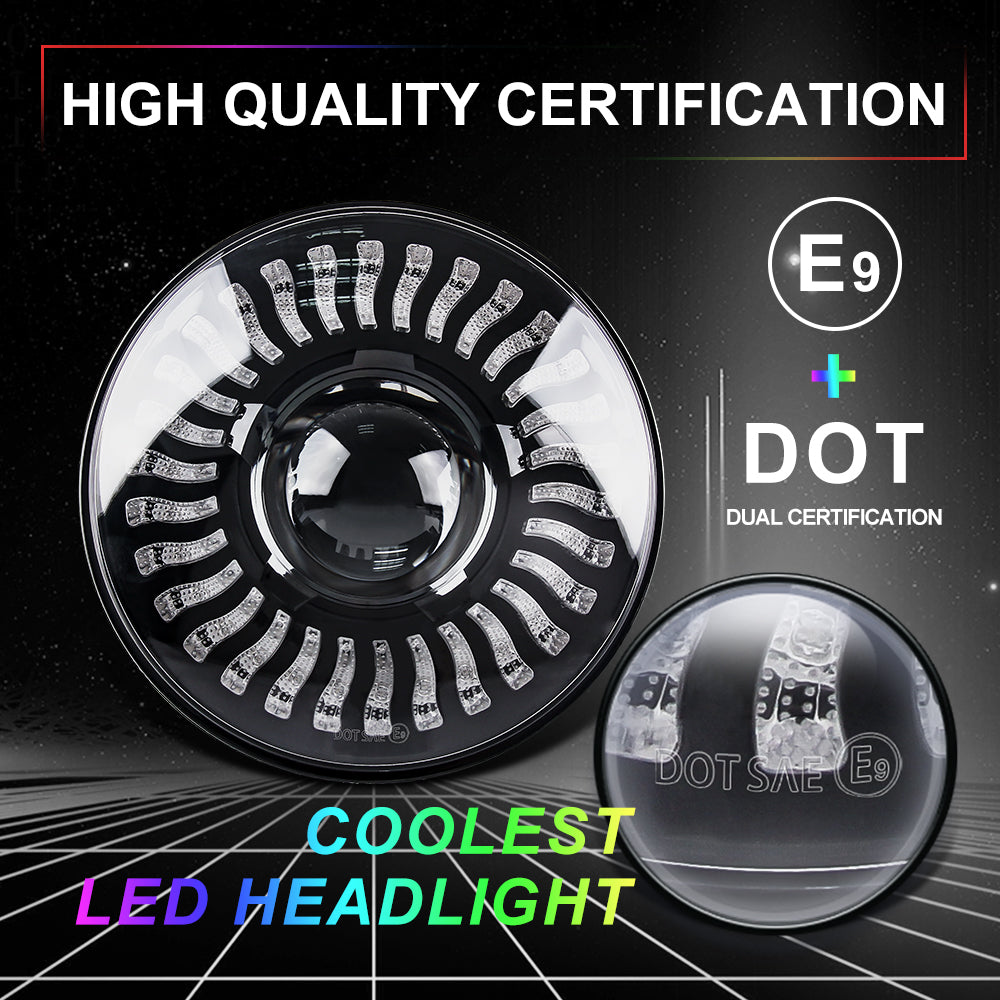

- Exceeds applicable DOT and Transport Canada requirements
- The package includes a pair of 7in round headlights and 2 pieces H4-H13 conversion adapter
FITMENT: for Jeep Wrangler CJ-5 1955~1983;for Jeep Wrangler CJ-7 1976~1986;
for Jeep CJ-8 Scrambler 1981~1985;
for Jeep Wrangler TJ (1997-2006);
for Jeep Wrangler TJ Unlimited / LJ (2003-2006);
for Jeep Wrangler JK 2 Door (2007-2015);
for Jeep Wrangler JK 4 Door Unlimited (2007-2015);
for Mitsubishi Pajero (L040) (1982 - 1991);
for Land Rover Defender 90 & 110;
for Mercedes Benz G Wagon;
for Nissan GQ Patrol;
for Toyota Landcruiser 60/70 Series with round headlamp (Needs additional H4 CANBUS to resolve negative switching);
for Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
for Harley Davidson Motorcycles;
for AM General for Hummer (1992~2001);
for Hummer H1&H2 (2003~2009);
for Kenworth Trucks with 7 inch round headlight;
