Introducing the all-new L5 Series, a 9-inch round driving light that seamlessly combines unique high-end design, exceptional illumination, and incredible durability. It's the perfect choice for drivers who demand top-notch performance. What sets the L5 Series 9-inch round light apart from others is its dual main beam source modes and two color temperature options for Daytime Running Lights (DRLs). This versatility provides maximum visibility for various road and off-road conditions, enhancing the bold aesthetic of your vehicle.

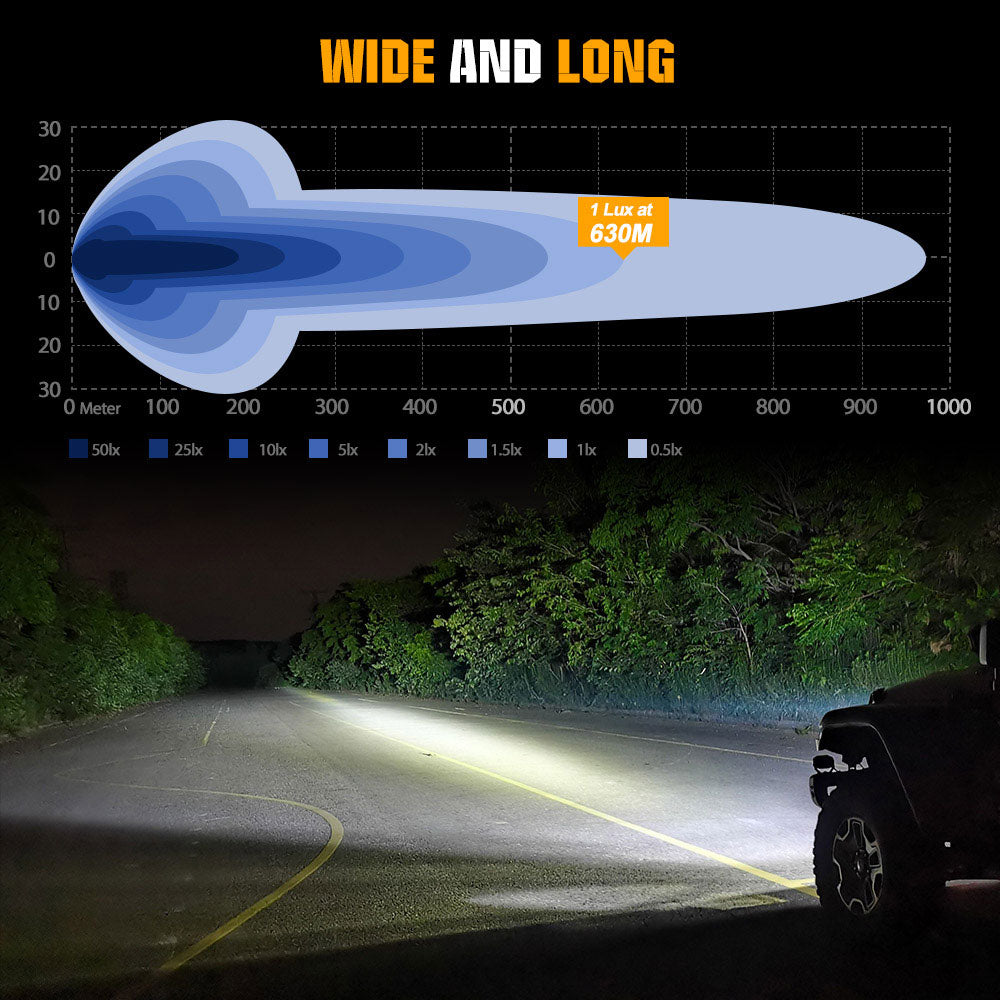

- Super spot beam: 98W/10780lm, 1lux@630m;
- Spot beam: 50W/5500lm, 1lux@350m; Daytime running light(yellow/white): 4.5W
- Offers dual main beam source modes and two color temperature Daytime Running Lights options
- Die-cast aluminum Housing, superior strength, and corrosion resistance

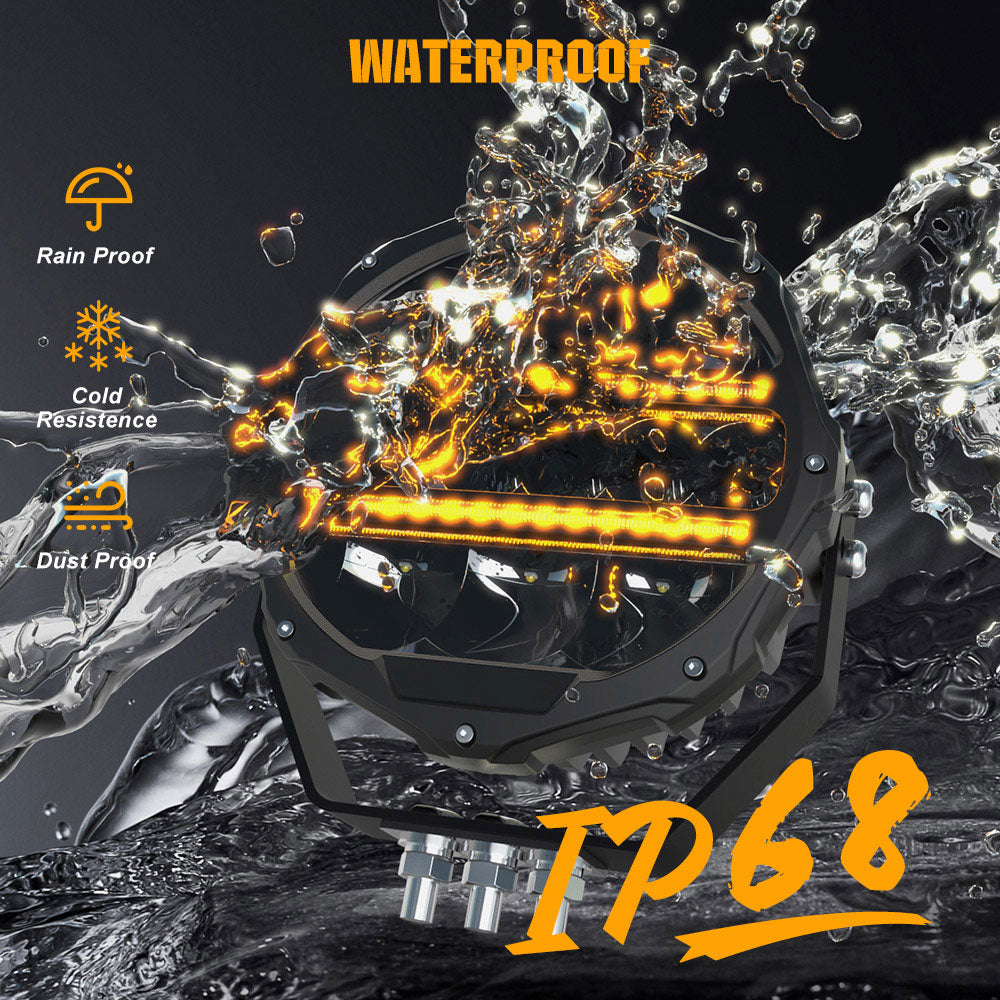

- IP68 waterproof rating, allowing the lamp to be submerged in water up to one meter for up to 30 minutes
- Unbreakable polycarbonate lens, high light transmission, impact-resistant, wear-resistant
- Anodized pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
- Pressure Equalization vent protects against water ingress, dust & contaminants
- 3mm thick Stainless Mounting bracket with rubber dampener, corrosion resistance and durability
- Come with DT-6 to DT-3 adapter cable

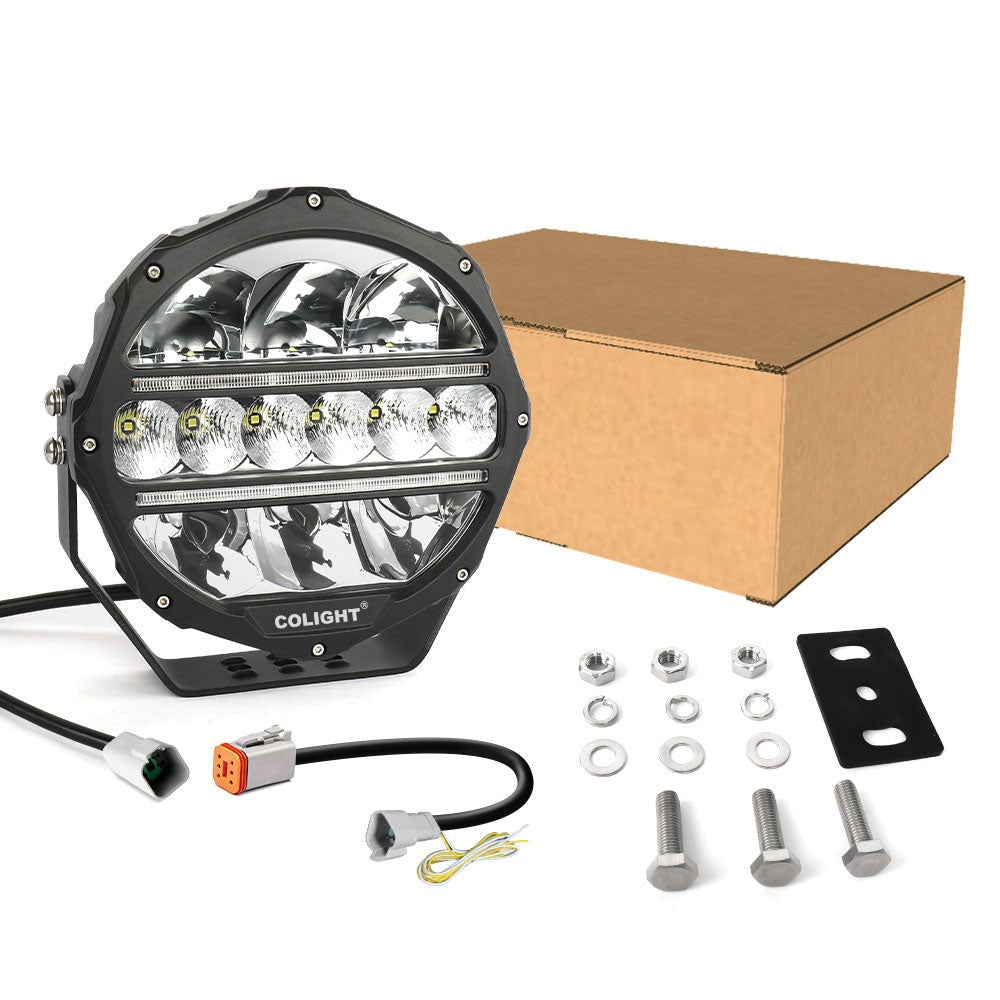

- Package list: single L5 lamp with U bracket, adapter cable*1, screws and bolts, rubber gasket*1
Optical Design and Light Output

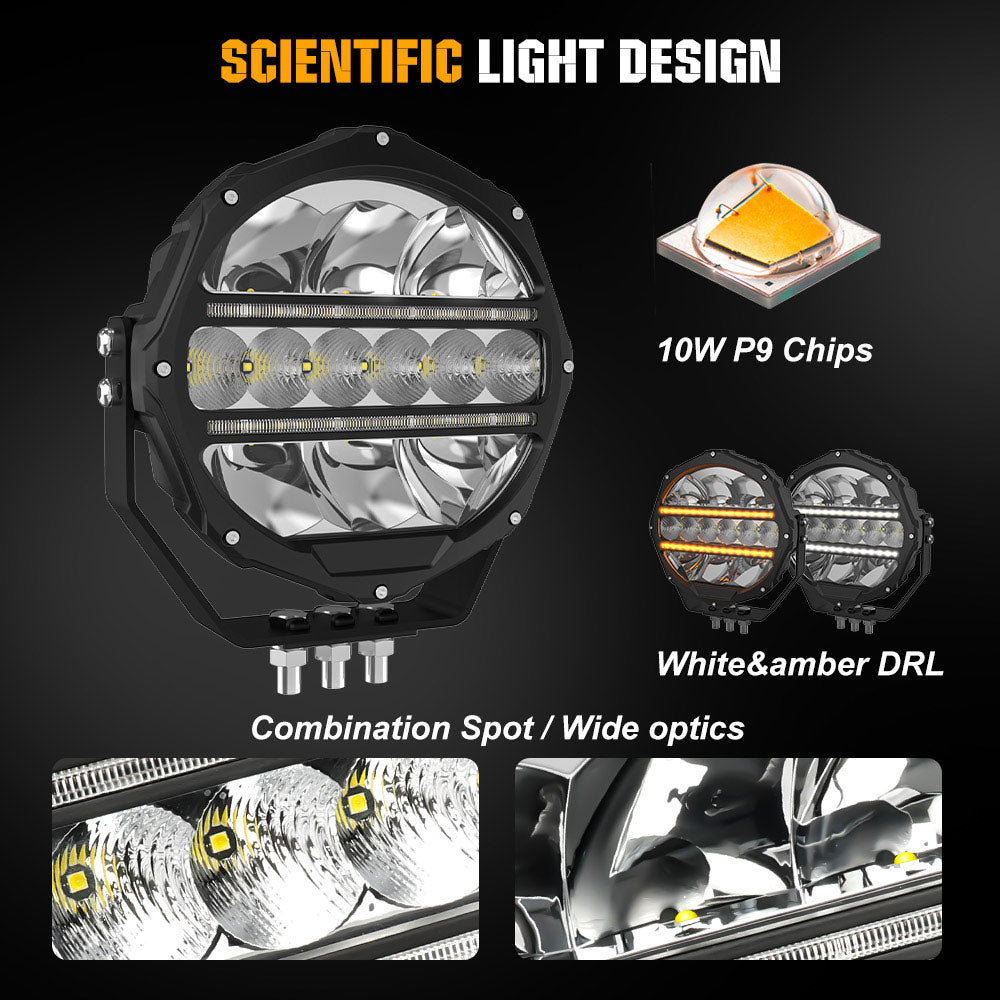

Featuring a distinctive dual optical design, the L5 Series offers two main beam options – spot and super spot, delivering maximum visibility for diverse off-road applications. The spot beam utilizes a central deep-patterned reflector to refract the light from 6 Osram P8 chips, achieving a balanced light output at a medium distance of 1lux@350M. The super spot beam, with its innovative hooded reflector design and rear-facing LEDs combined with the central spot reflector, aims to provide the farthest light projection. Emitting 21,560 raw lumens and reaching an illumination distance of over 1260m per pair, the L5 Series excels in both distance and spread.

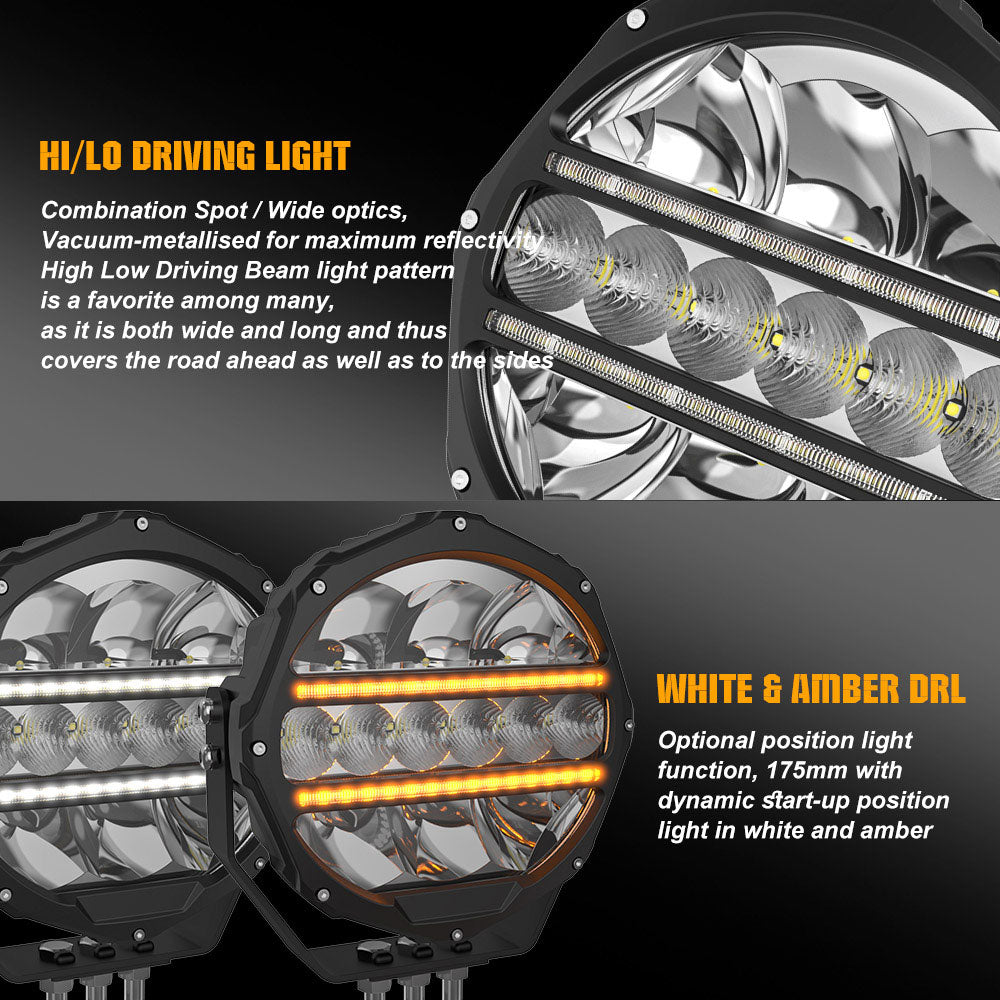

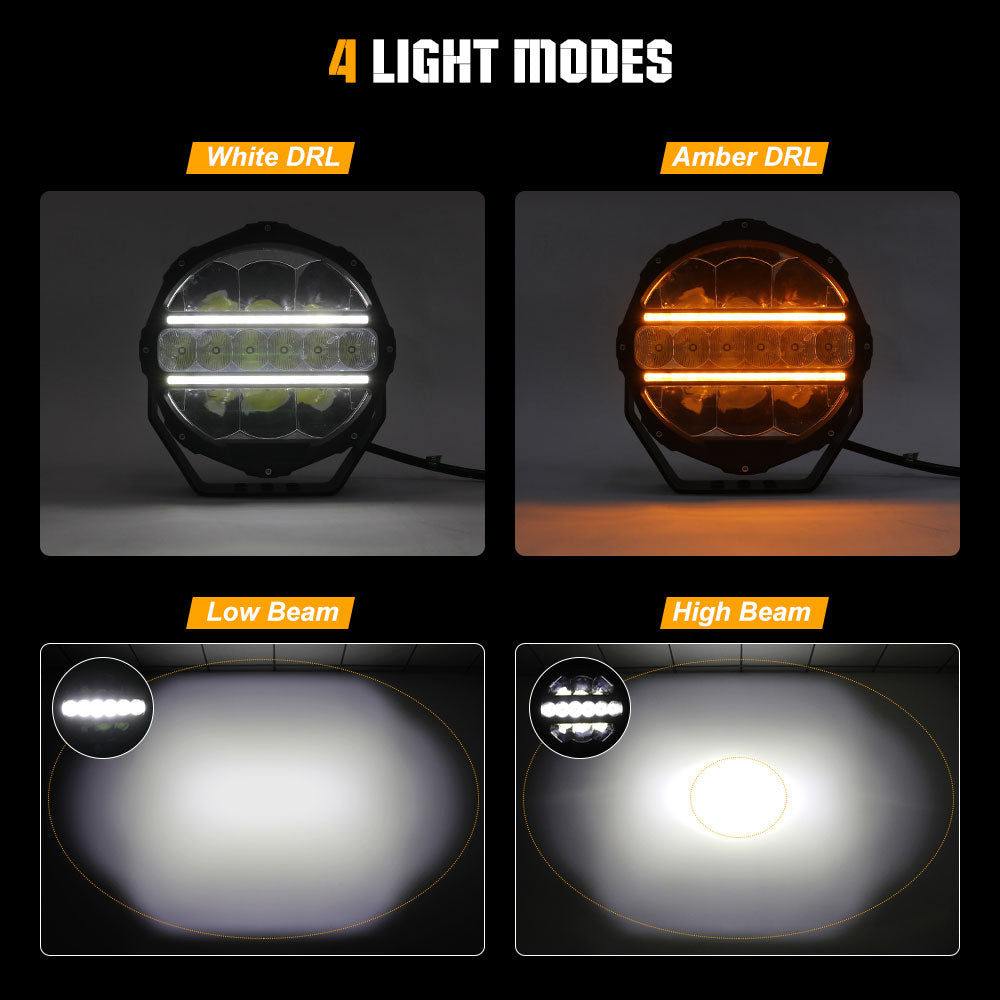

A unique feature of the L5 Series is its white and amber DRLs. The dual-row DRL design not only adds a striking visual appeal but also ensures powerful illumination. The white DRLs not only offer increased brightness and clarity to stand out on the road but also provide a modern and stylish look to the vehicle. The yellow DRLs can enhance contrast, making it easier for other drivers to perceive the vehicle's presence, which is particularly effective in adverse weather conditions such as fog, rain, or snow.
Rugged Construction, Born for Off-Roading

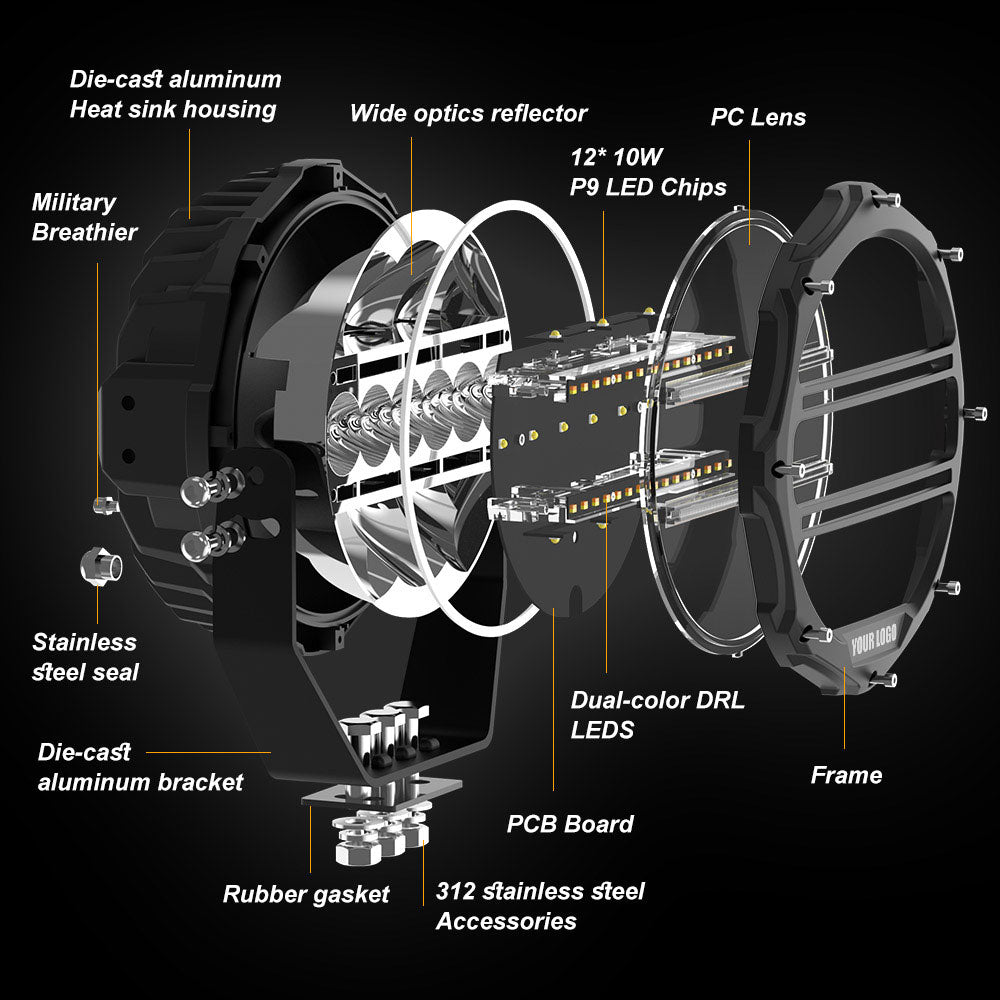

The L5 Series doesn't just impress in terms of performance; there are no compromises in components or construction processes. With a robust structure, it protects internal components from external shocks and vibrations, ensuring excellent heat dissipation for prolonged optimal performance. The housing, crafted from stylish and durable die-cast aluminum with a corrosion-resistant black powder coating, can withstand challenging driving conditions. Stainless steel sealing and breathing vents give the driving light an IP67 waterproof rating, ensuring stable and reliable performance in various harsh weather and environmental conditions.
The sturdy "U"-shaped bracket and thick Rubber gaskets provide robust support, cushioning, and protection. Adjusting the light angle is a breeze with the two bolts on each side of the bracket. The bottom, secured by three screws, ensures the driving light stays firmly fixed to the vehicle, even during off-road adventures or on rough terrains.
Equipped with a factory interface featuring a robust Deutsch 6-pin connector. Designed for convenience and adaptability, each package includes a DT-6 to DT-3 adapter cable, along with white and yellow wires. The dual-color capability allows you to customize the lighting setup based on your preferences or specific driving conditions. Choose white for a sleek and modern look, or opt for yellow to enhance visibility in adverse weather conditions such as fog or rain.
