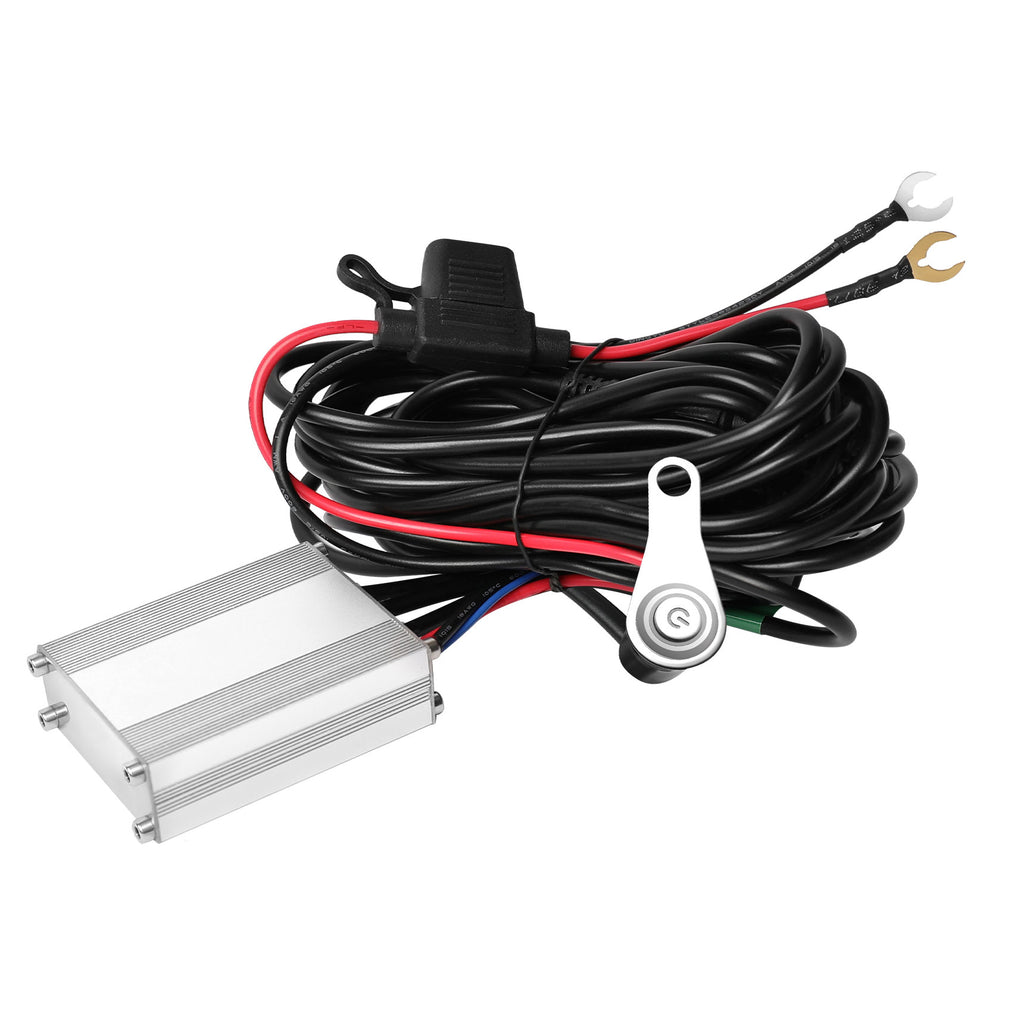

The 18AWG wire harness features an iron switch, a power relay, a blade fuse holder, positive and negative battery leads, and two light connectors with 3 wires. Special for COLIGHT dual beam dual color lights mounted on the motorcycle, such as the MF series, Bulge series, DB-P, DB-R and DB-M series.
- Universal fit: this harness kit can be widely used in all motorcycle and e-bike devices that use a DC12V 5A power source.

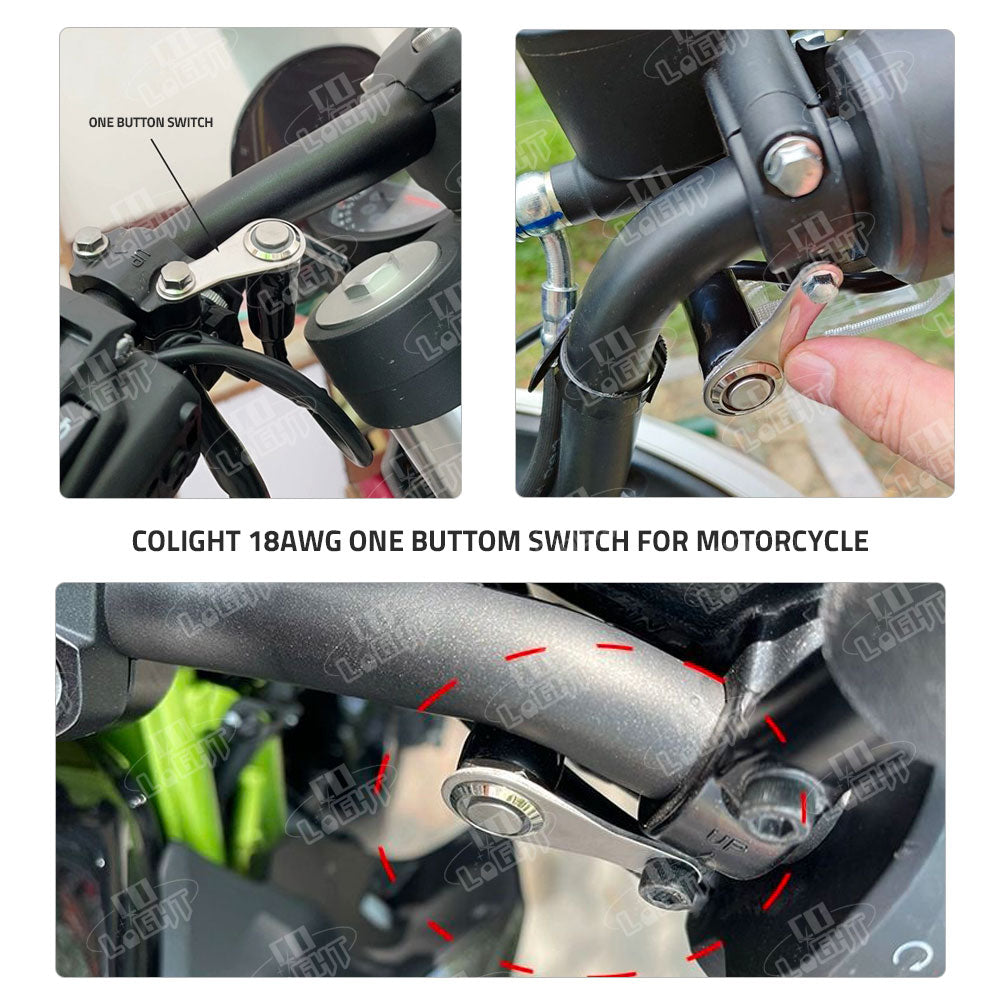

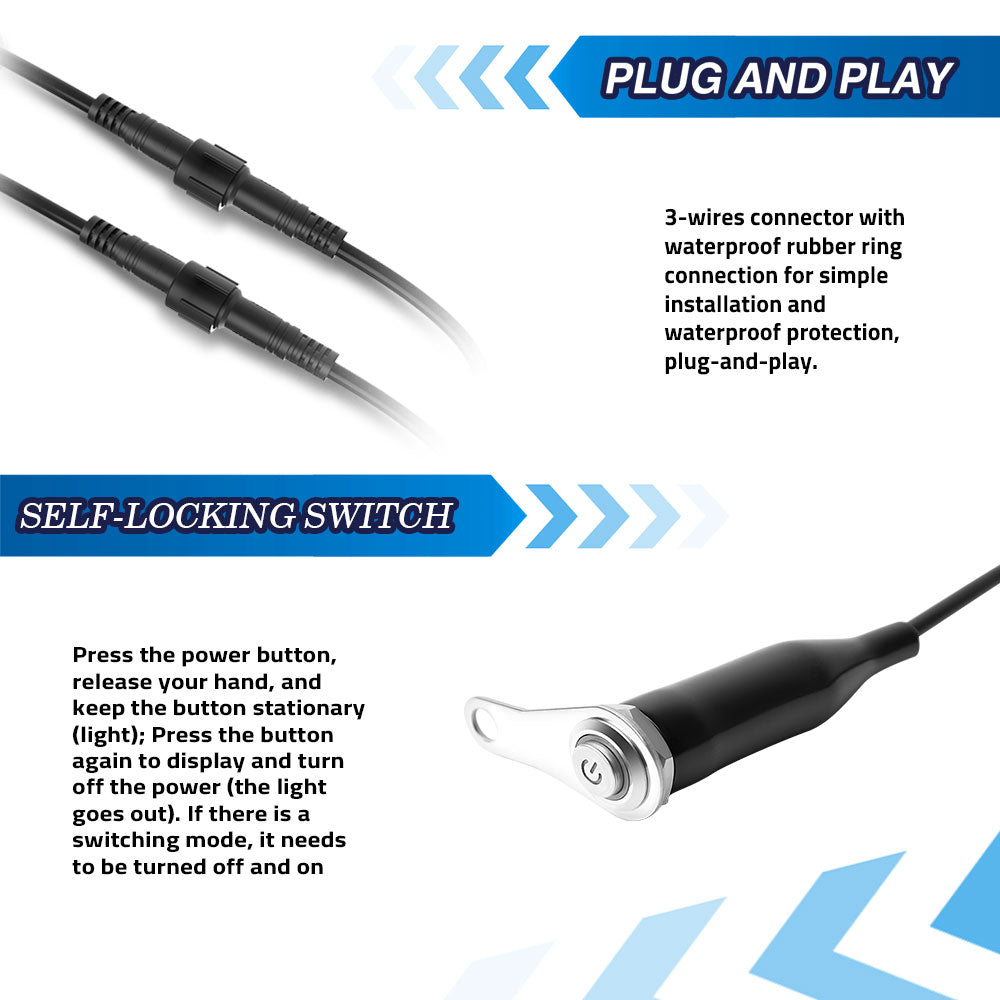

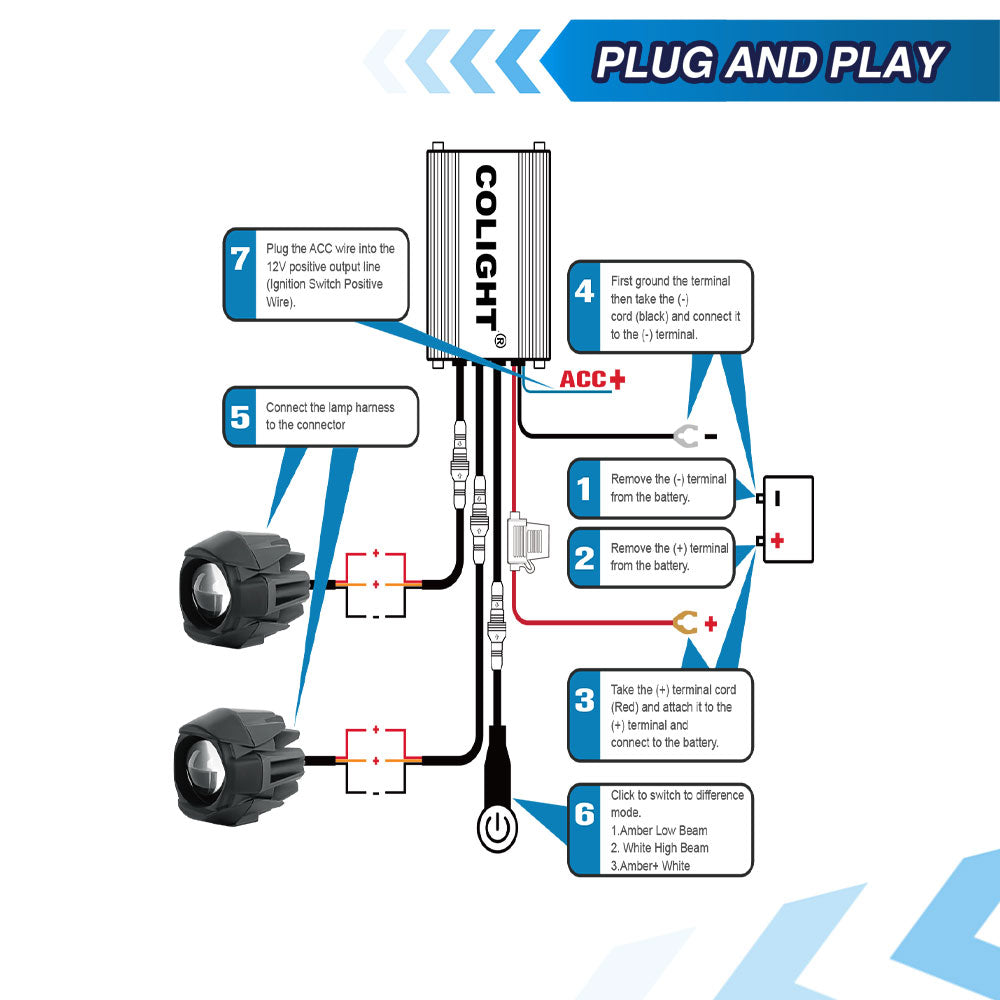

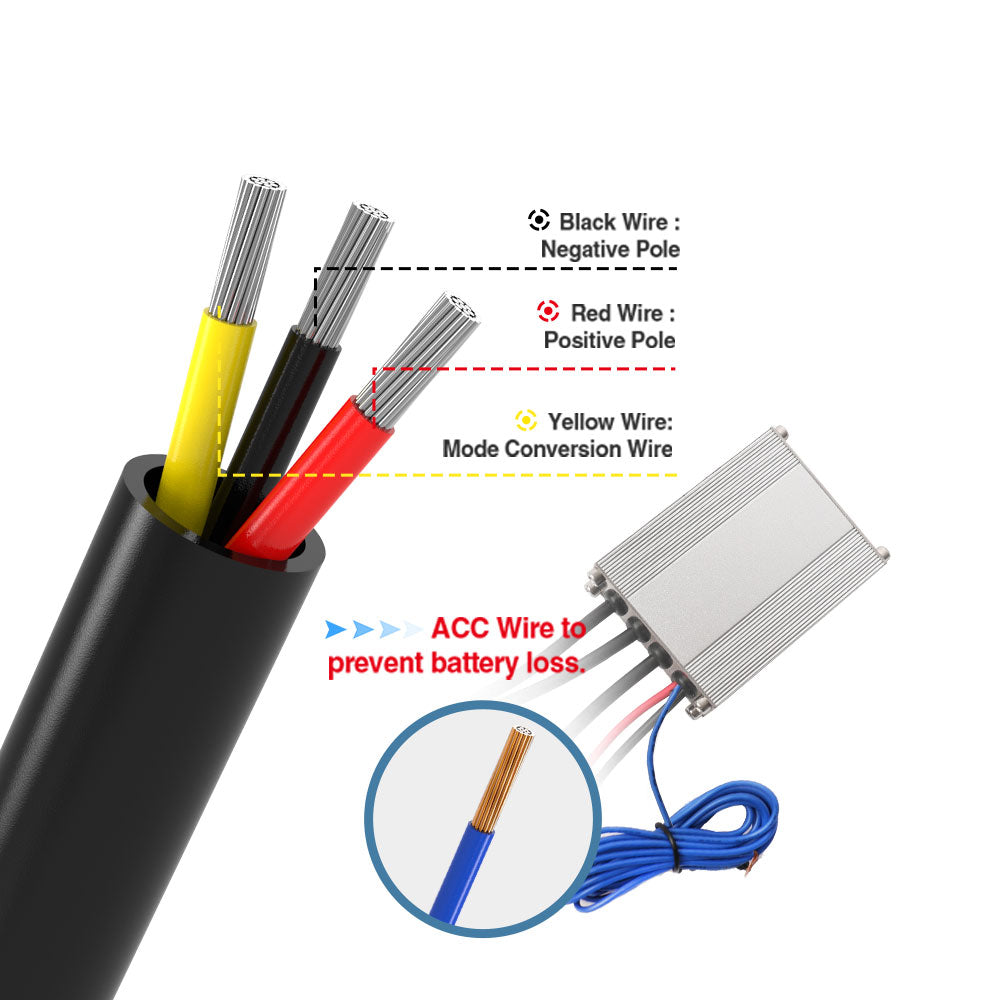

- Simple connection: Please follow the diagram in the picture. Every COLIGHT dual beam light has 3 wires, the black wire is connected to the negative, and the other two wires are connected to the positive. The wire length is 1.5m, specially designed for the wiring of motorcycle auxiliary lights. The on/off switch with 2 buttons is used to mount on the handlebar.
- High-temp resistance: Please avoid routing wires on the engine. Made of high-temperature resistant insulating rubber material, this 18AWG wiring harness can be used to connect 2 work lights below 60 wattages.

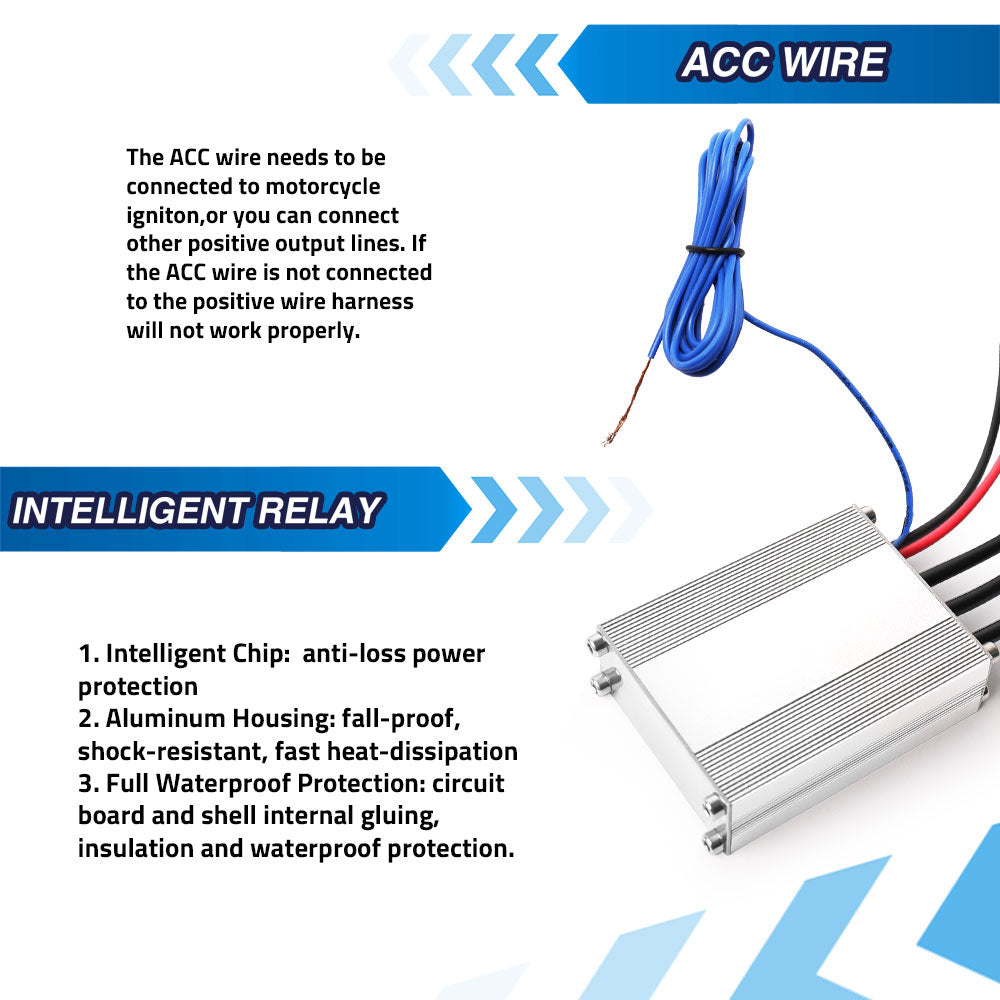

- Circuit protection: the power relay together with an inline blade fuse to defend against overcurrent and short circuits, ensuring safety
- The package includes 1x 1.5m wire harness
Please pay attention to the operating circumstances. Keep the wiring harness away from any moisture or heat, such as rain, moisture environment, and electro-heat equipment (engine and etc).
