Description
Introducing our trailblazing innovation, the 6.5-inch Round Driving Light---TrailBlazer Series, designed to take your driving experience to new heights. The TrailBlazer Series driving light stands out with its unique size, white and yellow Daytime Running Light (DRL) options, and impressive long-distance light output. Its compact yet powerful form factor seamlessly integrates into front bumpers, grille guards, and roof racks, making installation a breeze. Note: The original connector for the vehicle lights is a 4-pin DT plug. The packaging includes a conversion cable with a DT-2 plug and two additional yellow and white wires. Check below for how to connect the wire.
- Each light comprises 14 OSRAMs P8 LEDs, and delivers a formidable 4245 lumens with 48 watts of power
- 3 rows of spot reflectors and 1 row of flood reflectors, achieving a light source reflectivity of up to 99%
- Offers both long-distance driving illumination and white&yellow Daytime Running Light (DRL) options
- Deliver an impressive 1lux@1034m long-distance illumination per pair, 8490LM/96W
- Screwless Frame Design eliminates the hassles of loose screws caused by rugged terrain or impacts and provides a superior defense against moisture, dust, and other unwanted intruders within your lamp.
- Die-cast aluminum Housing, superior strength and corrosion resistance
- IP68 waterproof rating, allowing the lamp to be submerged in water up to one meter for up to 30 minutes
- The PC Lens, high light transmission, impact-resistant, wear-resistant
- Come with extra DT-4 to DT-2 +2 wires Conversion Cable, check below about how to wire up the lights
- Pressure Equalization vent protects against water ingress, dust & contaminants
- 3mm thick Stainless Mounting bracket with rubber dampener, corrosion resistance and durability

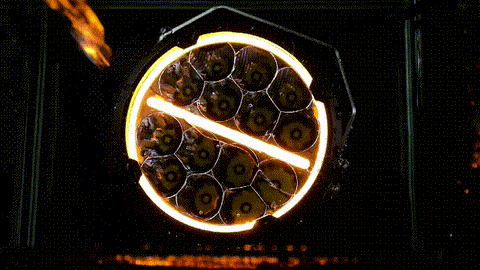

Driving Beam and White & Yellow DRL: Utilizing cutting-edge lighting technology, this driving light offers both long-distance driving illumination and white&yellow Daytime Running Light (DRL) options. With 14 high-power chips arranged in three rows of spot reflectors and one row of flood reflectors, the TrailBlazer Series driving light delivers an impressive 1lux@517m long-distance illumination, providing exceptional clarity to light up the road ahead. Each light boasts a formidable 4245 lumens with 48 watts of power, piercing through darkness, enabling you to see far and drive safely and confidently at night.
The white DRL enhances visibility and clarity during the day, ensuring optimal visibility for your vehicle. On the other hand, the yellow DRL shines through adverse weather conditions like fog, rain, or snow, making your vehicle stand out to other drivers and enhancing safety.
Q: How does it switch from the White DRL to the amber DRL?
A: This TrailBlazer Series comes with three light modes: the main light source, yellow DRL (Daytime Running Light), and white DRL. As a result, this 6.5-inch driving light has four wires at its end - one negative and three positive. After using the included conversion cable, you will find two extended wires, one yellow and one white. The yellow wire is for controlling the yellow DRL, and you can connect it to the positive terminal of the turn signal as a position light. The white wire is for controlling the white DRL, and you can connect it to the positive terminal of the daytime running light.
Whether navigating winding roads, off-road terrains, or long highways, this driving light ensures a reliable and clear view, providing a smooth and confident driving experience.
CONNECTION: The original connector for the vehicle lights is a 4-pin DT plug. The packaging includes a conversion cable with a DT-2 plug and two additional yellow and white wires. You can easily connect the DT-2 plug to our 14AWG DT 2pin wire harness with round switch, and then attach the yellow and white wires to the positive terminal of the turn signal or daytime running light. Activating the turn signal/daytime running light will enable the yellow/white DRL functionality. Furthermore, by activating the wiring switch in addition to the turn signal/daytime running light, you can achieve a combination of the main driving beam and the yellow/white DRL.
Built to Last: The 6.5-inch round driving light boasts a robust construction that ont only protects the internal components from external impacts and vibrations, but also ensures excellent heat dissipation, guaranteeing optimal performance over extended periods. The housing is crafted from stylish and durable die-cast aluminum with a corrosion-resistant black powder coating, capable of enduring various challenging driving conditions. The stainless steel sealing and the breathing vent provide the driving light with an IP68 waterproof rating, ensuring stable and reliable performance in various harsh weather and environmental conditions. Comes with a robust "U" shape bracket with 2 bolts on each side, it ensures the driving light remains firmly attached to the vehicle even during off-road driving or bumpy terrain.
Whether on rough trails, through extreme weather, or during long journeys, this 6.5-inch round driving light is designed to be a reliable companion, providing enhanced visibility and safety wherever the road takes you.
